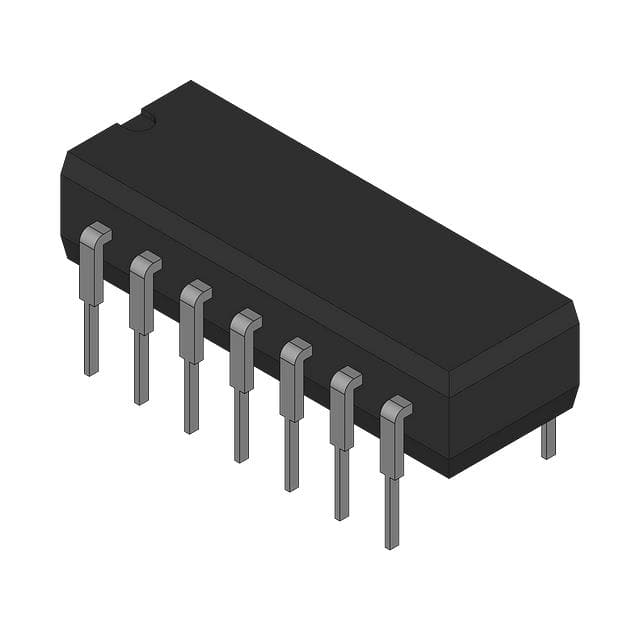

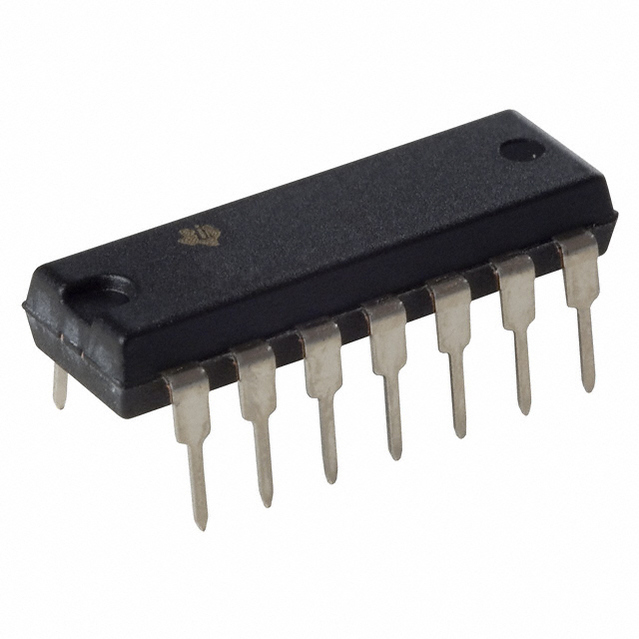

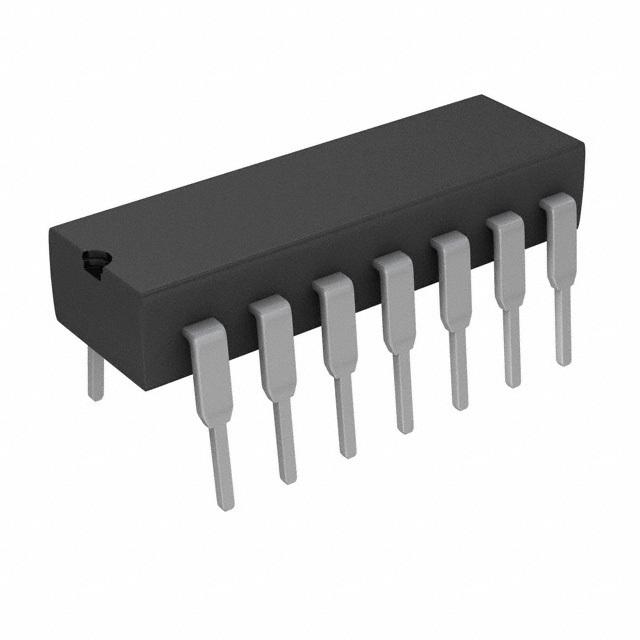

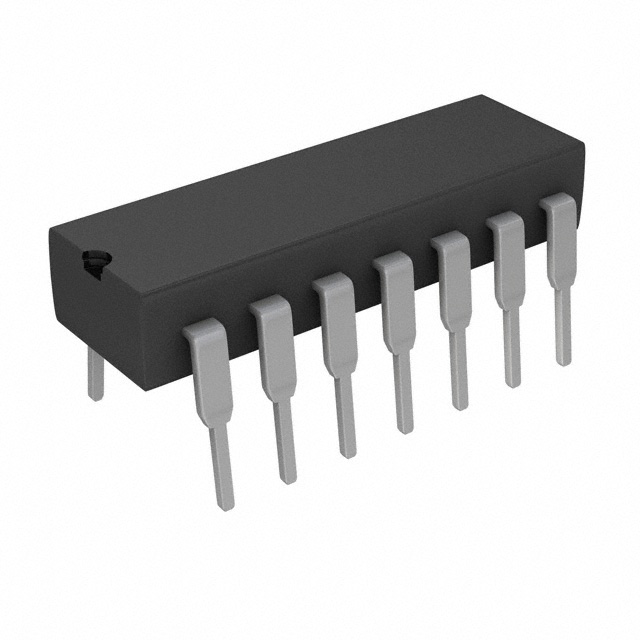

LM224AN

TEXAS INSTRUMENTS  LM224AN  运算放大器, 1.2 MHz, 4个放大器, 0.5 V/µs, 3V 至 30V, DIP, 14 引脚

The is a 4 independent high-gain frequency-compensated Operational Amplifier designed specifically to operate from a single supply or split supply over a wide range of voltages.

.

Internal frequency compensation

.

Common-mode input voltage range includes ground, allowing direct sensing near ground

.

Low input bias and offset parameters

.

2kV ESD Protection

.

0.8mA Typical low supply-current drain independent of supply voltage

.

2mV Typical input offset voltage

.

2nA Typical input offset current

.

15nA Typical input bias current

.

32V Differential input voltage range equal to maximum-rated supply voltage

.

100V/mV Typical open-loop differential voltage amplification

.

Green product and no Sb/Br
