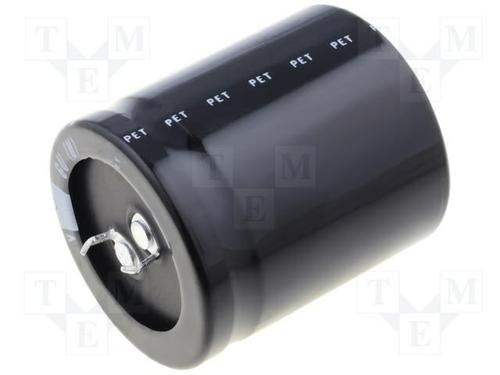

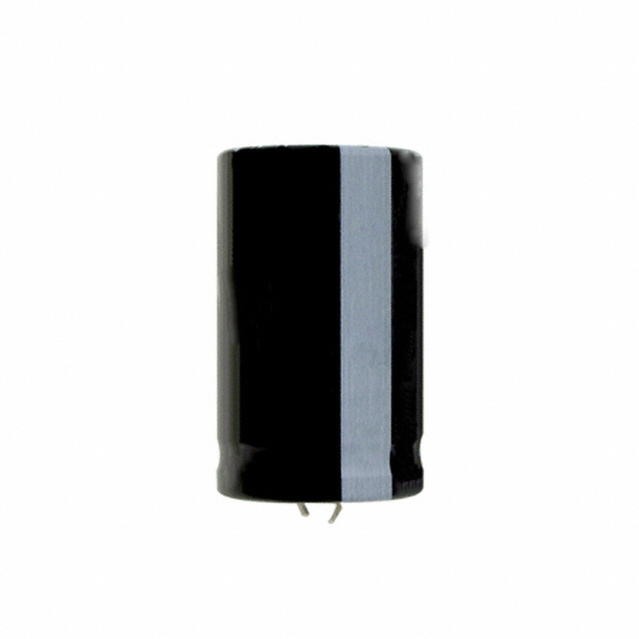

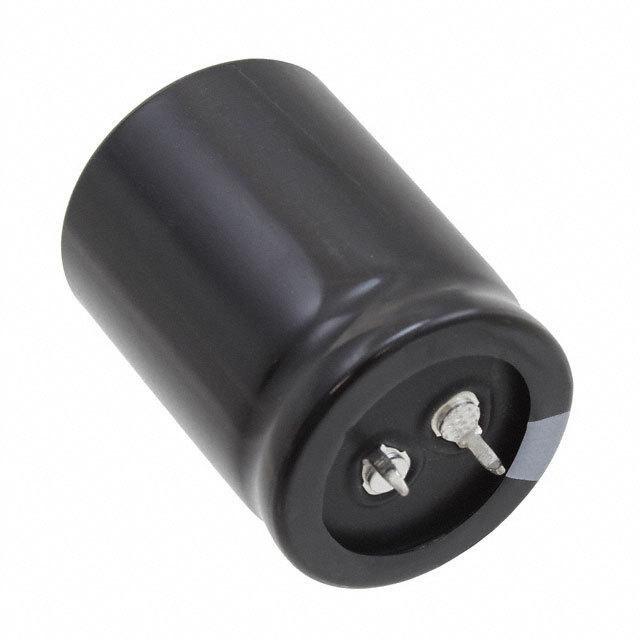

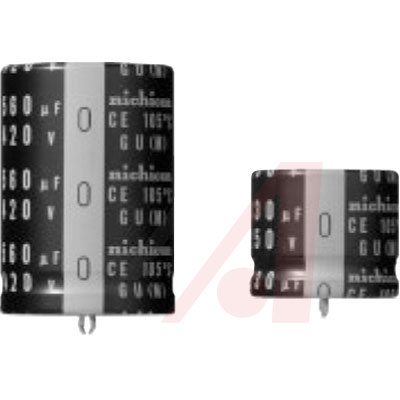

LGU2E681MELB

NICHICON  LGU2E681MELB  铝电解电容, 680uF, 250V, 摁入式

**Features:

**

* Withstanding 3000 Hours Application of Rated Ripple Current at 105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

** **Specifications:

**

* Temperature Range: –40°C to +105°C**

**

* Rated Voltage Range: 16-450 V**

**

* Rated Capacitance Range: 47 to 47000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

欧时:
Capacitor Electrolytic 680uF 250V SnapIn

立创商城:
680uF ±20% 250V

得捷:
CAP ALUM 680UF 20% 250V SNAP

e络盟:
铝电解电容, 680uF, 250V, 摁入式

艾睿:

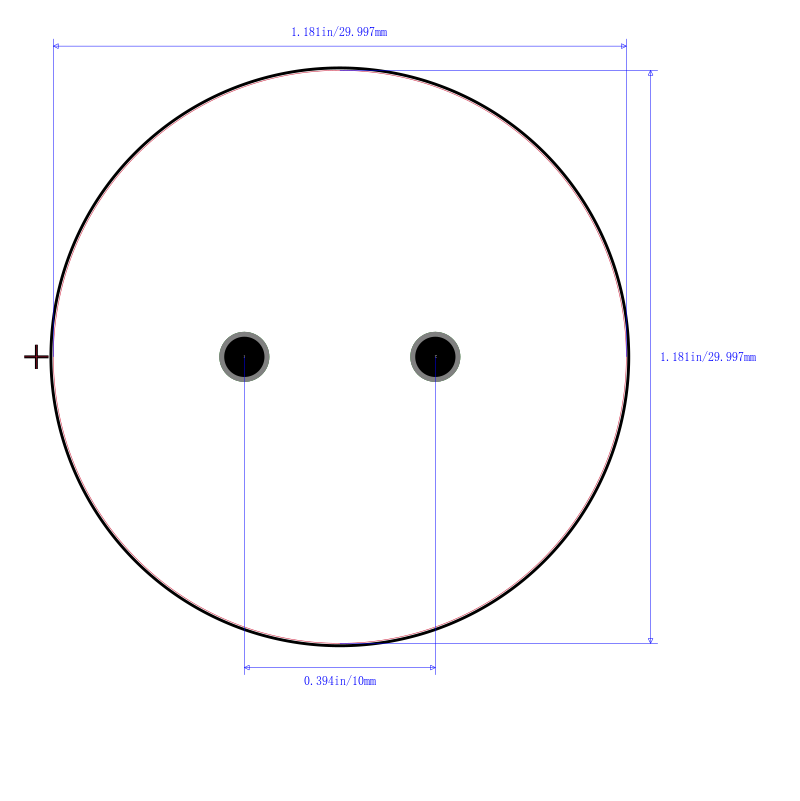

Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic LGU2E681MELB aluminum capacitor from Nichicon is the one for you! It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 680uF. The LGU2E681MELB aluminum electrolytic capacitor has a snap-in termination style. This product is 40 mm tall with a diameter of 30 mm. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its leakage current is 1230@5Min μA.

Allied Electronics:
Capacitor Aluminum Electrolytic Cap 680uF 250V 20% Temp.105 Snap-In 30X40mm

安富利:
Cap Aluminum 680uF 250V 20% 30 X 40mm Snap-In 10mm 2000mA 3000h 105°C Bulk

TME:
Capacitor: electrolytic; THT; 680uF; 250VDC; Ø30x40mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 680uF 250V 20% 30 X 40mm Snap-In 10mm 2000mA 3000h 105C Bulk

Newark:
# NICHICON  LGU2E681MELB  Electrolytic Capacitor, Snap-in, 680 µF, 250 V, GU Series, ± 20%, Quick Connect, Snap-In, 30 mm
