TEXAS INSTRUMENTS LM13700MX/NOPB 跨导放大器, 双路, 2个放大器, SOIC
The is a dual operational Transconductance Amplifier with linearizing diodes and buffers. The LM13700 series consists of two current-controlled transconductance amplifier, each with differential inputs and a push-pull output. The two amplifier share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10dB signal-to-noise improvement referenced to 0.5% THD. High impedance buffers are provided which are especially designed to complement the dynamic range of the amplifiers. The output buffers of the LM13700 differ from those of the LM13600 in that their input bias currents and thus their output DC levels are independent of IABC.
输出电流 20.0 mA
供电电流 2.6 mA
电路数 2
通道数 2
针脚数 16
共模抑制比 80 dB
输入补偿漂移 0.00 V/K
带宽 2 MHz
转换速率 50.0 V/μs
增益频宽积 2 MHz
输入补偿电压 300 µV
输入偏置电流 1 µA
输入电压Max 32 V
输入电压Min 9.5 V
输出电流Max 650 µA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 80 dB
共模抑制比Min 80 dB
电源电压 10V ~ 36V
电源电压Max 30V ~ 50V
安装方式 Surface Mount
引脚数 16

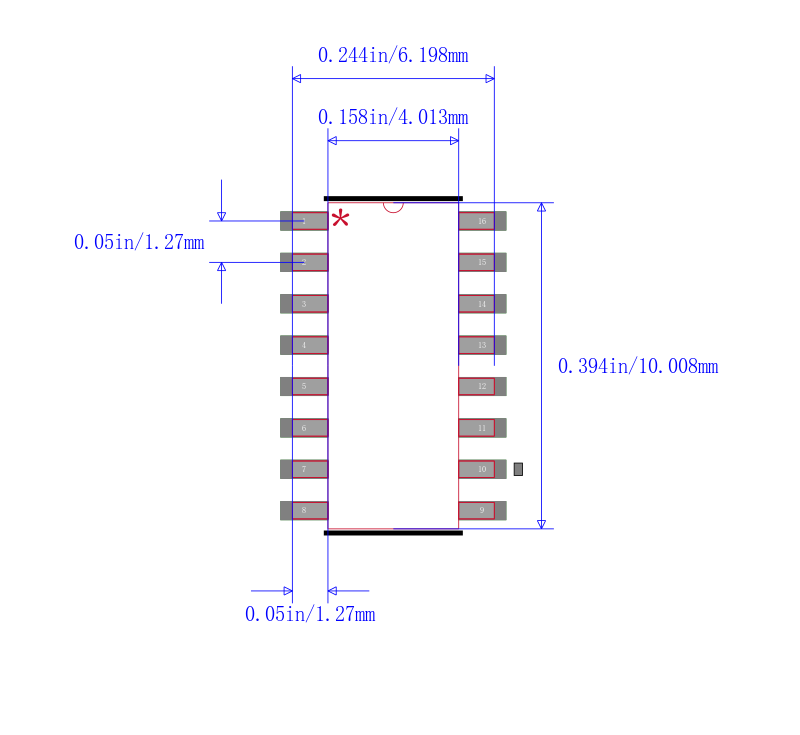

封装 SOIC-16
封装 SOIC-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 信号处理, 时钟与计时, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM13700MX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM13700M/NOPB 德州仪器 | 类似代替 | LM13700MX/NOPB和LM13700M/NOPB的区别 |
LM13700MX 德州仪器 | 类似代替 | LM13700MX/NOPB和LM13700MX的区别 |
LM13700M 德州仪器 | 类似代替 | LM13700MX/NOPB和LM13700M的区别 |
