LM324N

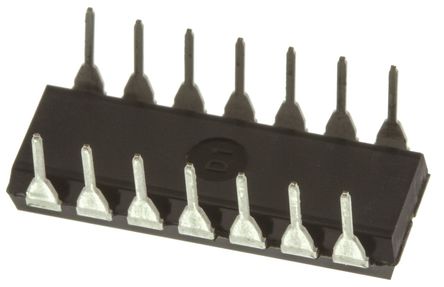

TEXAS INSTRUMENTS  LM324N  运算放大器, 四路, 1.2 MHz, 4个放大器, 0.5 V/µs, 3V 至 32V, ± 1.5V 至 ± 16V, DIP, 14 引脚

此设备包括四个独立的高增益频率补偿, 设计通过单电源用来运行宽电压范围, 如两个电源间的差值介于3V至32V 3V至26V, LM2902时, 或者VCC超过输入共模电压至少1.5V或更多时, 也可以从分离电源进行操作. 低电源电流消耗与电源电压宽幅无关.

.

宽供电电压范围

.

低电源电流消耗与电源电压无关

.

共模输入电压范围, 包括地面, 可直接感应近地面.

.

低输入偏置和失调参数

.

内部频率补偿

.

Common mode input voltage range includes ground, allowing direct sensing near ground

.

Input offset voltage is typically 3mV

.

Input offset current is typically 2nA

.

Differential input voltage range of 32V equal to maximum rated supply voltage

.

Operating temperature range from 0°C to 70°C

This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Supply voltages larger than 32V for single supply and outside the range of ±16V for dual supply can permanently damage the device.
