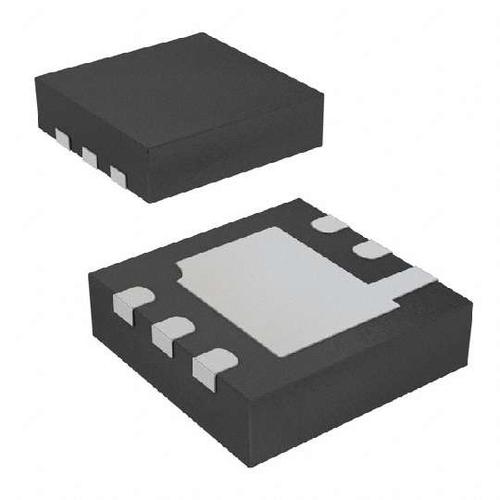

LDLN015PU28R

STMICROELECTRONICS  LDLN015PU28R  固定电压稳压器, LDO, 2.1V至5.5V, 86mV压差, 2.8V输出, 150mA输出, DFN-6

PMIC - 稳压器 - 线性 正 固定 输出 150mA 6-DFN（2x2）

得捷:
IC REG LINEAR 2.8V 150MA 6DFN

立创商城:
正 Vin=5.5V Vout=2.8V 150mA 92dB

e络盟:
固定电压稳压器, LDO, 2.1V至5.5V, 86mV压差, 2.8V输出, 150mA输出, DFN-6

艾睿:
Maintain a steady voltage level with this LDO LDLN015PU28R linear regulator from STMicroelectronics. Its typical dropout voltage at current is 0.086@150mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Use this part at voltages between 2.1 V and 5.5 V. With a fixed output that has a voltage of 2.8 V, this is power management at its best. Using a load regulation of 0.001%/mATyp and line regulation of 0.005%/VTyp is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.18@150mA V.

安富利:
LDO Regulator Pos 2.8V 0.15A 6-Pin DFN T/R

富昌:
LDLN015 系列 150 mA 2.8 V 固定输出 线性稳压器 IC - DFN-6EP

Chip1Stop:
LDO Regulator Pos 2.8V 0.15A 6-Pin DFN EP T/R

Verical:
LDO Regulator Pos 2.8V 0.15A 6-Pin DFN EP T/R
