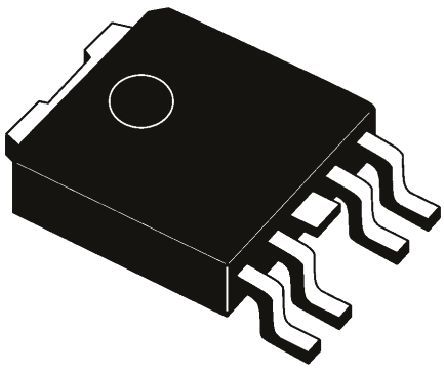

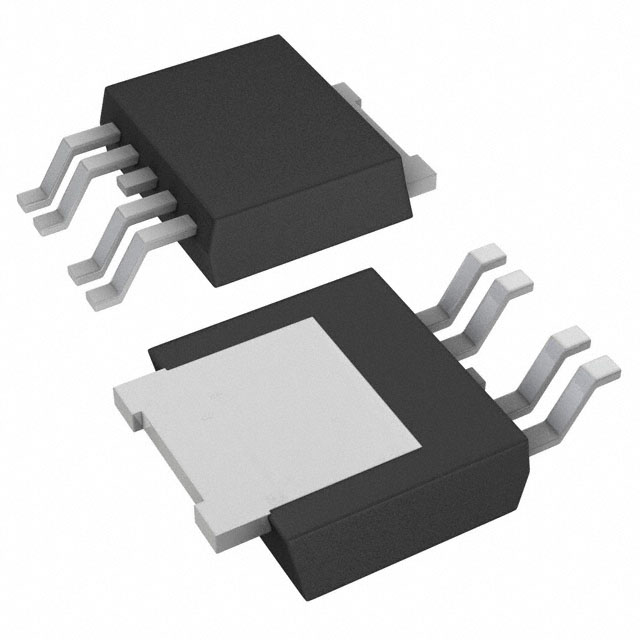

STMICROELECTRONICS LDFMPT-TR 电压稳压器, LDO, 可调, 2.5V至16V输入, 125mV压差, 800mV至12V/0.5A输出, P-PAK-5
可调线性 LDO 电压稳压器,STMicroelectronics
欧时:
### 可调线性 LDO 电压稳压器,STMicroelectronics### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR POS ADJ 500MA PPAK
e络盟:
电压稳压器, LDO, 可调, 2.5V至16V输入, 125mV压差, 800mV至12V/0.5A输出, P-PAK-5
艾睿:
Use the LDO LDFMPT-TR linear regulator from STMicroelectronics to maintain a constant output voltage. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.125@500mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. With a small input voltage of 2.5 V and a max of 16 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 0.8 to 12 V, this is power management at its best. At a load regulation of 0.06%/ATyp and line regulation of 0.01%/VTyp your circuit is capable of maintaining a constant voltage level at your output. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.3@500mA V.
安富利:
LDO Regulator Pos 0.8V to 12V 0.5A 5-Pin PPAK T/R
富昌:
LDFM Series 500 mA 0.8 to 12 V ADJ Output SMT VLDO Voltage Regulator - PPAK-5
Chip1Stop:
LDO Regulator Pos 0.8V to 12V 0.5A 5-Pin4+Tab PPAK T/R
TME:
Voltage regulator; LDO, linear, adjustable; 0.8÷20V; 0.5A; P2PAK
Verical:
LDO Regulator Pos 0.8V to 12V 0.5A 5-Pin4+Tab PPAK T/R
Newark:
# STMICROELECTRONICS LDFMPT-TR LDO, ADJ O/P, 0.8-12V, 0.5A, P-PAK-5
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 12 V 500mA PPAK
输出接口数 1
输出电压 0.8V ~ 12V
输出电流 500 mA
针脚数 5
静态电流 0.2 mA
跌落电压 125 mV
输入电压Max 16 V
输入电压Min 2.5 V
输出电压Max 12 V
输出电压Min 800 mV
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.5V ~ 16V
安装方式 Surface Mount
引脚数 5
封装 TO-252-5
长度 6.6 mm
宽度 6.2 mm
高度 2.4 mm
封装 TO-252-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, Communications & Networking, 通信与网络, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
