STMICROELECTRONICS LDFPVR 电压稳压器, LDO, 可调, 2.6V至16V输入, 200mV压差, 800mV至12V/1A输出, DFN-6
可调线性 LDO 电压稳压器,STMicroelectronics
得捷:
IC REG LINEAR POS ADJ 1A 6DFN
欧时:
STMicroelectronics LDFPVR LDO 稳压器, 可调输出, 0.8 → 12 V输出, 1A最大输出, ±1.5%精确度
贸泽:
低压差稳压器 POWER MANAGEMENT
e络盟:
电压稳压器, LDO, 可调, 2.6V至16V输入, 200mV压差, 800mV至12V/1A输出, DFN-6
艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO LDFPVR linear regulator from STMicroelectronics. Its typical dropout voltage at current is 0.2@1A V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 1 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.6 V that does not exceed 16 V. With an adjustable output that has a voltage of 0.8 to 12 V, this is power management at its best. A load regulation of 0.2%/ATyp and line regulation of 0.01%/VTyp is necessary for providing a constant voltage level at your output. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.5@1A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 0.8V to 12V 1A 6-Pin DFN T/R
富昌:
LDF Series 1 A 0.8 to 12 V ADJ Output SMT VLDO Voltage Regulator - DFN-6 2 x 2
Chip1Stop:
LDO Regulator Pos 0.8V to 12V 1A 6-Pin DFN EP T/R
Verical:
LDO Regulator Pos 0.8V to 12V 1A 6-Pin DFN EP T/R
Newark:
# STMICROELECTRONICS LDFPVR LDO, ADJ O/P, 0.8-12V, 1A, DFN-6
儒卓力:
**LDO VREG ADJ 1A DFN2X2 **
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 12 V 1A 6-DFN 2x2
输出接口数 1
输出电压 0.8V ~ 12V
输出电流 1 A
针脚数 6
静态电流 800 µA
跌落电压 200 mV
输入电压Max 16 V
输入电压Min 2.6 V
输出电压Max 12 V
输出电压Min 800 mV
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.6V ~ 16V
安装方式 Surface Mount
引脚数 6

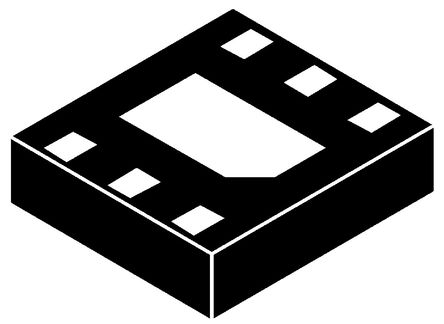

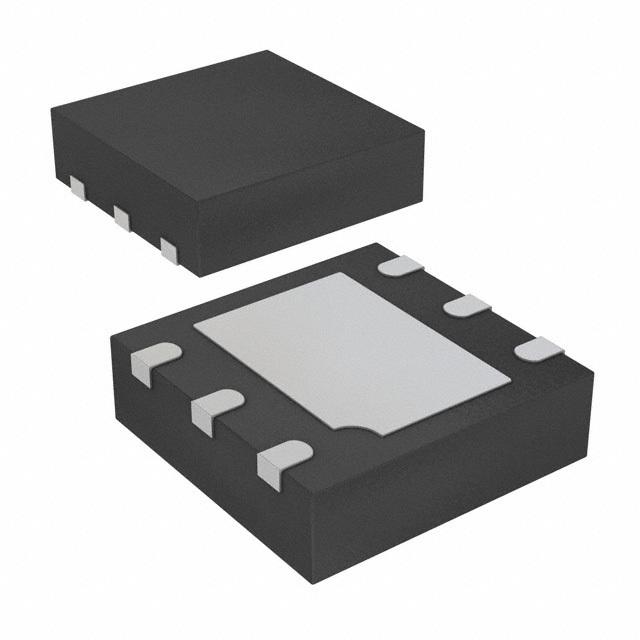

封装 DFN-6
长度 2 mm
宽度 2 mm
高度 0.95 mm
封装 DFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
