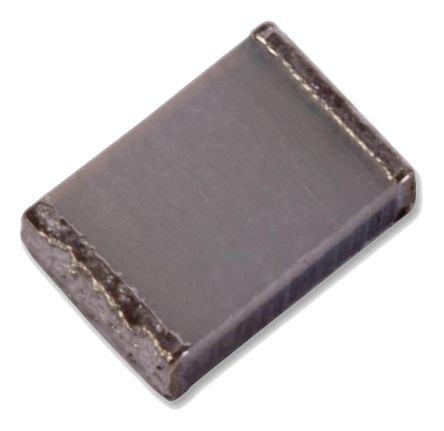

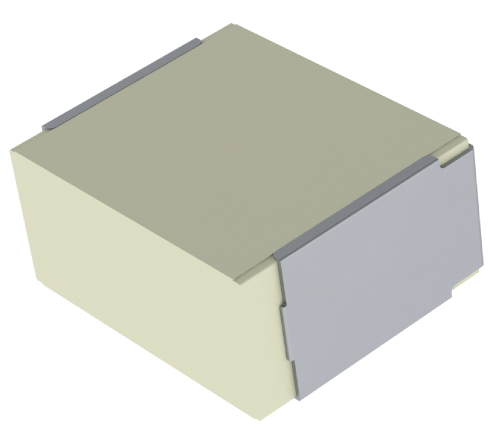

KEMET LDEIC2180KA0N00 膜电容, AEC-Q200 LDE系列, 0.018 µF, ± 10%, PEN聚邻苯二甲酸酯, 250 V, 1812 [4532公制]
LDE 系列汽车级
LDE 系列是叠币表面安装聚萘二甲酸乙二醇酯 PEN 薄膜器，汽车级
应用包括旁路和信号耦合。LDE 是通用系列，设计用于提供最高可靠性和高温服务。
**特点和优势：**
额定电压：50 V 直流至 1000 V 直流
额定电压：40 V 直流至 250 V 交流
电容范围：0.001 – 4.7 μF
EIA 尺寸 1206 - 6054
气候类别：55/125/56
符合 RoHS 标准且无铅端接
工作温度范围：-55˚C 至 +125˚C
提供汽车 AEC-Q200 等级
###
**特点**
Rated voltage 50 V dc to 1000 V dc
Rated voltage 40 V ac to 250 V ac
Capacitance range 0.001 – 4.7 μF
EIA size 1206 – 6054
Climatic category 55/125/56
RoHS Compliant and lead-free terminations
Operating temperature range of −55˚C to +125˚C
Automotive AEC–Q200 grades available
###
**应用**
Applications include bypassing and signal coupling. LDE is a general purpose series designed for the highest reliability and high temperature service.
