LDC1051NHRR

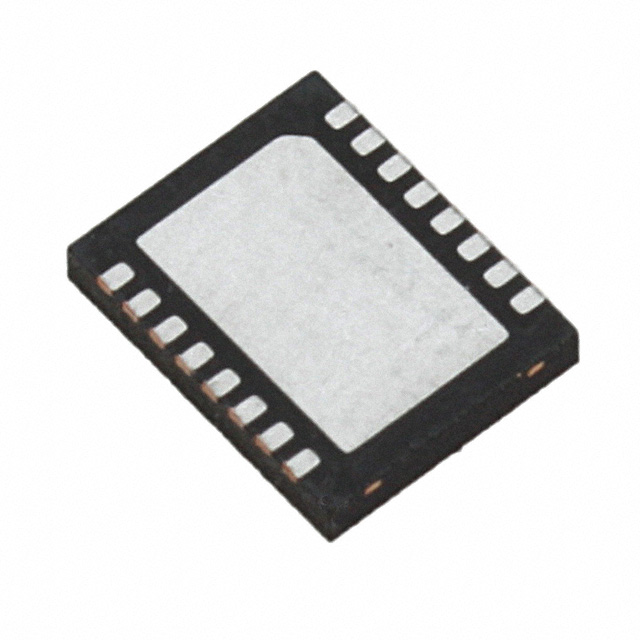

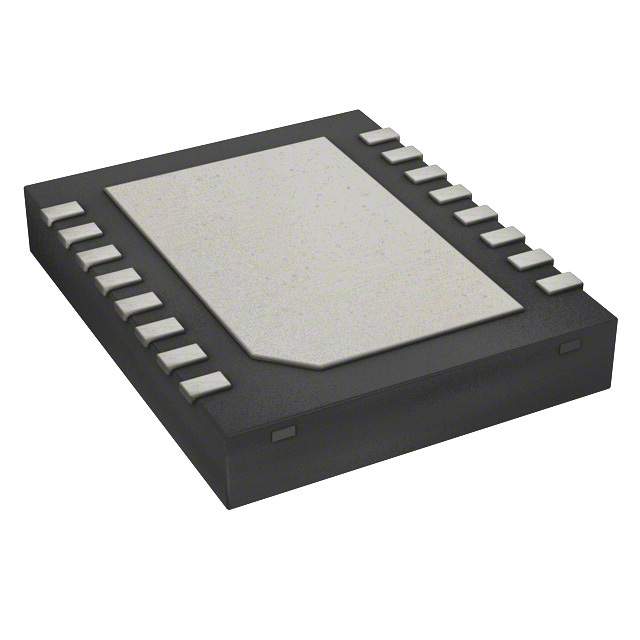

TEXAS INSTRUMENTS  LDC1051NHRR  芯片, 电感至数字转换器, 8位, WSON-16

The is an Inductance-to-Digital Converter provides system designers a way to achieve high performance and reliability at a lower system cost than other competing solutions. It is pin compatible with the LDC1000 16-bit Rp/24-bit L and the LDC1041 8-bit Rp/24-bit L. It offers system designers different resolution options based on their application and system requirements. The Inductive sensing is a contactless, short-range sensing technology enabling high-resolution and low-cost position sensing of conductive targets, even in harsh environments.

.

Remote sensor placement isolating the LDC from harsh environments

.

High durability by virtue of contactless operation

.

Higher flexibility for system design using coils or springs as sensors

.

Insensitive to non-conductive environmental interferers such as dirt, dust and oil

.

Magnet-free operation

.

Green product and no Sb/Br

Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
