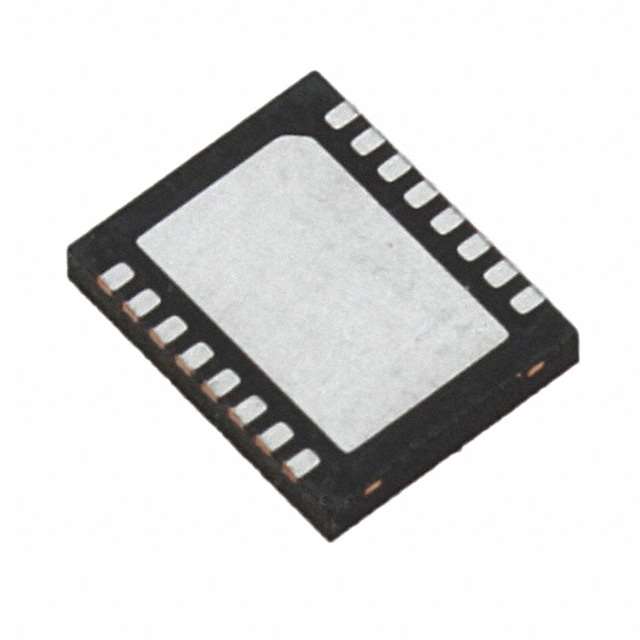

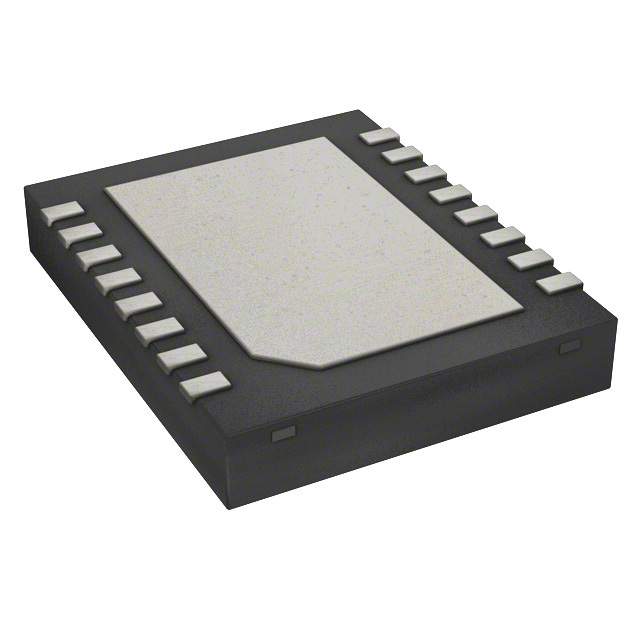

TEXAS INSTRUMENTS LDC1041NHRR 芯片, 电感至数字转换器, 8位, WSON
The is an Inductance-to-Digital Converter provides system designers a way to achieve high performance and reliability at a lower system cost than other competing solutions. The LDC1041 is pin compatible with the LDC1000 16-bit Rp/24-bit L and the LDC1051 8-bit Rp. It offers system designers different resolution options based on their application and system requirements. The Inductive sensing is a contactless, short-range sensing technology enabling high-resolution and low-cost position sensing of conductive targets, even in harsh environments.
- .
- Remote sensor placement isolating the LDC from harsh environments
- .
- High durability by virtue of contactless operation
- .
- Higher flexibility for system design using coils or springs as sensors
- .
- Insensitive to non-conductive environmental interferers such as dirt, dust and oil
- .
- Magnet-free operation
- .
- Sub-micron precision
- .
- Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
