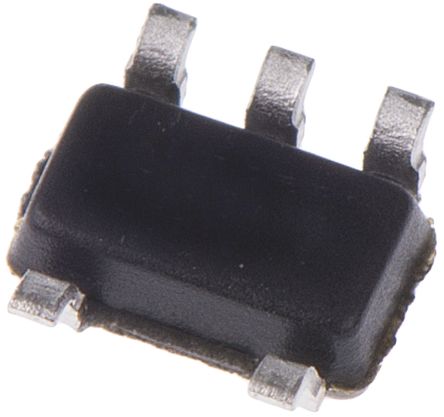

STMICROELECTRONICS LDK120M10R 固定电压稳压器, LDO, 1.9V至5.5V, 150mV压差, 1V输出, 200mA输出, SOT-23-5
LDO(低压降)线性电压调节器,STMicroelectronics,150mA 至 200mA
### LDO(低压降)线性电压调节器,STMicroelectronics
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 1V 200MA SOT23-5
欧时:
### LDO(低压降)线性电压调节器,STMicroelectronics,150mA 至 200mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
固定电压稳压器, LDO, 1.9V至5.5V, 150mV压差, 1V输出, 200mA输出, SOT-23-5
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LDK120M10R linear regulator from STMicroelectronics. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.1@100mA|0.15@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. With a small input voltage of 1.9 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1 V, this is power management at its best. Using a load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.3@200mA V.
安富利:
LDO Regulator Pos 1V 0.2A 5-Pin SOT-23 T/R
富昌:
LDK120 系列 200 mA 1 V 固定输出 低噪声 LDO 稳压器 - SOT-23-5
Chip1Stop:
LDO Regulator Pos 1V 0.2A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1V 0.2A 5-Pin SOT-23 T/R
Newark:
# STMICROELECTRONICS LDK120M10R Fixed LDO Voltage Regulator, 1.9V to 5.5V, 150mV Dropout, 1Vout, 200mAout, SOT-23-5
输出接口数 1
输出电压 1 V
输出电流 200 mA
供电电流 60µA ~ 100µA
针脚数 5
静态电流 100 µA
跌落电压 150 mV
输入电压Max 5.5 V
输入电压Min 1.9 V
输出电压Min 1 V
输出电流Max 200 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 1.9V ~ 5.5V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 2.95 mm
宽度 1.6 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
