L78M05CDT

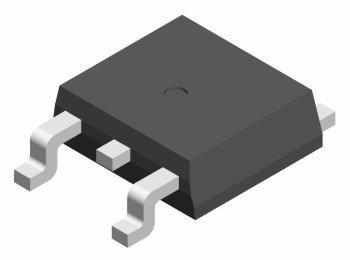

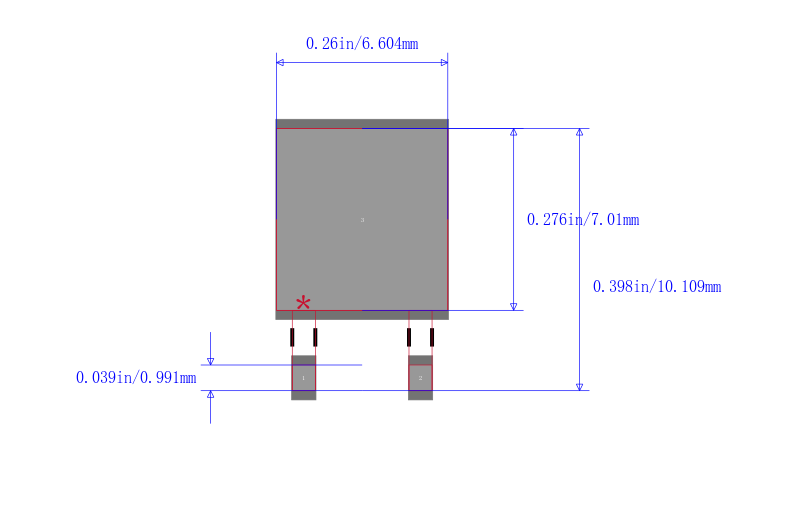

STMICROELECTRONICS  L78M05CDT  线性稳压器直流/直流转换器, 10 V, 35 V, 5 V, 500 mA, TO-252, 3 引脚

DESCRIPTION

The L78M00 series of three-terminal positive regulators is available in TO-220, TO-220FP,

DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution

problems associated with single point regulation. Each type employs internal current limiting,

thermal shut-down and safe area protection, making it essentially indestructible. If adequate

heat sinking is provided, they can deliver over 0.5A output current. Although designed primarily

as fixed voltage regulators, these devices can be used with external components to obtain

adjustable voltage and currents.

■ OUTPUT CURRENT TO 0.5A

■ OUTPUT VOLTAGES OF 5; 6; 8; 9; 12; 15; 18; 20; 24V

■ THERMAL OVERLOAD PROTECTION

■ SHORT CIRCUIT PROTECTION

■ OUTPUT TRANSITION SOA PROTECTION
