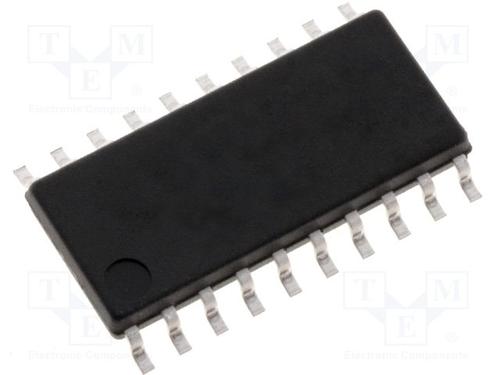

STMICROELECTRONICS L4981AD013TR 芯片, PFC 控制器, 100KHZ, 19.5V, SOIC-20
The is a Power Factor Corrector provides the necessary features to achieve a very high power factor up to 0.99. Realized in BCD 60II technology this power factor corrector PFC pre-regulator contains all the control functions for designing a high efficiency-mode power supply with sinusoidal line current consumption. The L4981 can be easily used in systems with mains voltages between 85V to 265V without any line switch. This new PFC offers the possibility to work at fixed frequency optimizing the size of the input filter; the operating frequency mode working with an average current-mode PWM controller, maintaining sinusoidal line current without slope compensation. Besides power MOSFET gate driver, precise voltage reference externally available, error amplifier, under-voltage lockout, current sense and the soft start are included. To limit the number of the external components, the device integrates protections as overvoltage and overcurrent.
频率 100 kHz
电源电压DC 19.5V max
工作电压 14.5V ~ 19.5V
额定功率 600 mW
输出接口数 3
输出电压 7.50 V
针脚数 20
开关频率 100 kHz
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 14.5V ~ 19.5V
电源电压Max 19.5 V
输入电压 1.6.5.3 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
宽度 7.6 mm
封装 SOIC-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L4981AD013TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L4981BD013TR 意法半导体 | 完全替代 | L4981AD013TR和L4981BD013TR的区别 |
L4981BD 意法半导体 | 类似代替 | L4981AD013TR和L4981BD的区别 |
