LMC6034IMX/NOPB

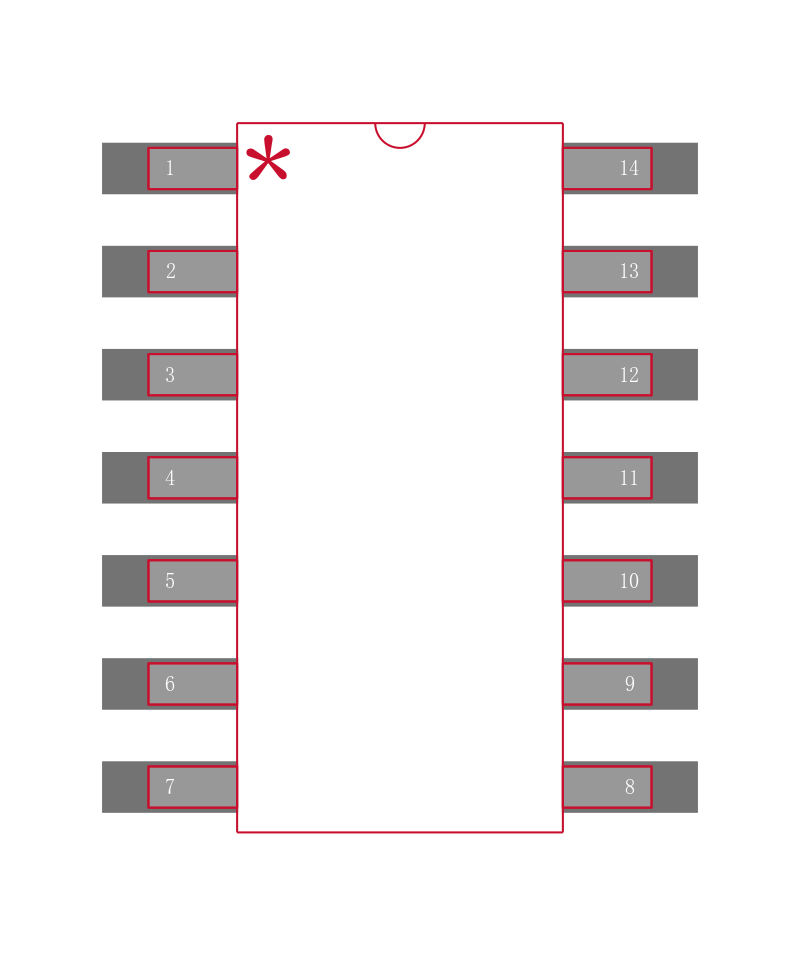

四路 15.5V、1.4MHz、CMOS 运算放大器 14-SOIC -40 to 85

DESCRIPON

The LMC6034 is a CMOS quad operational amplifier which can operate from either a single supply or dual supplies. Its performance features include an input common-mode range that reaches ground, low input bias current, and high voltage gain into realistic loads, such as 2 kΩ and 600Ω.

FEATURES

• Specified for 2 kΩ and 600Ω Loads

• High Voltage Gain: 126 dB

• Low Offset Voltage Drift: 2.3 μV/°C

• Ultra Low Input Bias Current: 40 fA

• Input Common-Mode Range Includes V−

• Operating Range from +5V to +15V Supply

• ISS = 400 μA/Amplifier; Independent of V+

• Low Distortion: 0.01% at 10 kHz

• Slew Rate: 1.1 V/μs

• Improved Performance Over TLC274

APPLICATIONS

• High-Impedance Buffer or Preamplifier

• Current-to-Voltage Converter

• Long-Term Integrator

• Sample-and-Hold Circuit

• Medical Instrumentation
