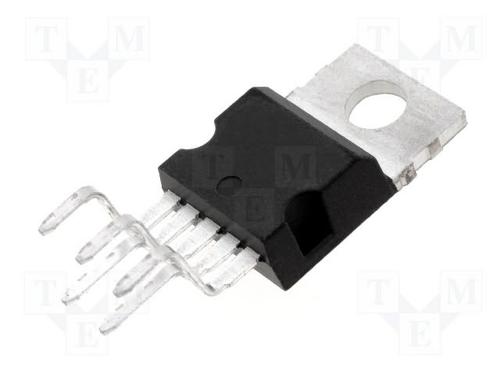

STMICROELECTRONICS L165V 运算放大器, 单路, 100 kHz, 1个放大器, 8 V/µs, ± 6V 至 ± 18V, Pentawatt, 5 引脚
DESCRIPTION
The L165 is a monolithic integrated circuit in Pen tawatt® package, intended for use as power operational amplifier in a wide range of applications, including servo amplifiers and power supplies. The high gain and high output power capability provide superiore performance wherever an operational amplifier/power booster combination is required.
■OUTPUT CURRENT UP TO 3A
■LARGE COMMON-MODE AND DIFFERENTIAL MODE RANGES
■SOA PROTECTION
■THERMAL PROTECTION ± 18V SUPPLY
电源电压DC 18.0V max
额定功率 20 W
供电电流 40 mA
电路数 1
通道数 1
针脚数 5
耗散功率 20 W
共模抑制比 70 dB
带宽 100 kHz
转换速率 8.00 V/μs
增益 80.0 dB
输入补偿电压 2 mV
输入偏置电流 200 nA
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压Max 18 V
安装方式 Through Hole
引脚数 5

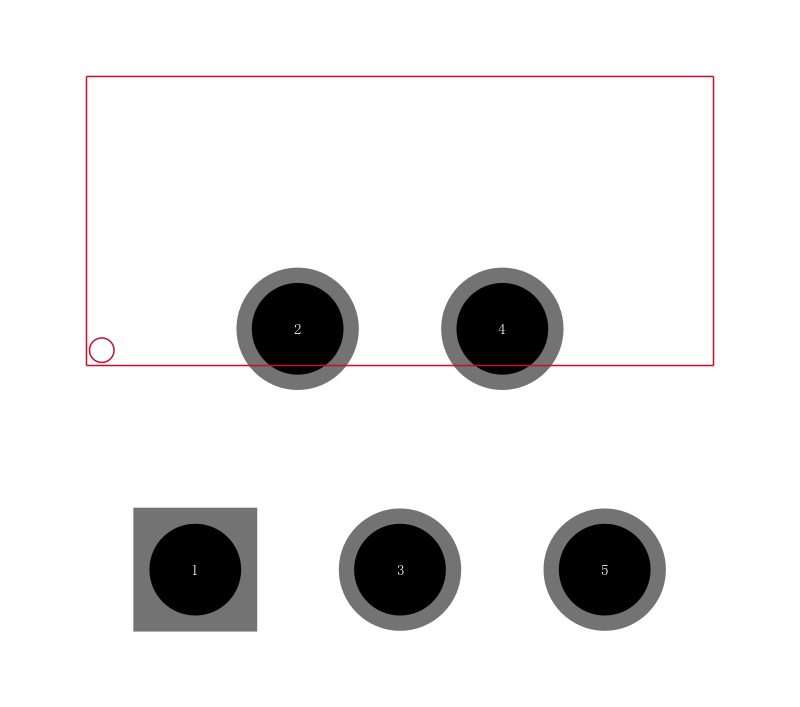

封装 Pentawatt-5

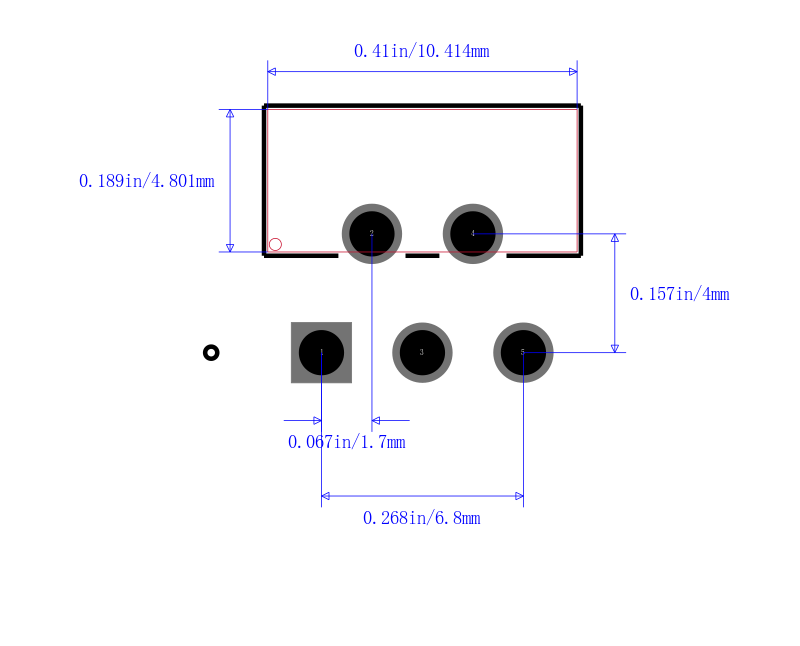

长度 10.4 mm
宽度 4.8 mm
高度 9.2 mm
封装 Pentawatt-5
工作温度 -40℃ ~ 100℃
产品生命周期 Not Recommended for New Designs
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
L165V ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L165H 意法半导体 | 完全替代 | L165V和L165H的区别 |
