LT6003HS5#TRMPBF

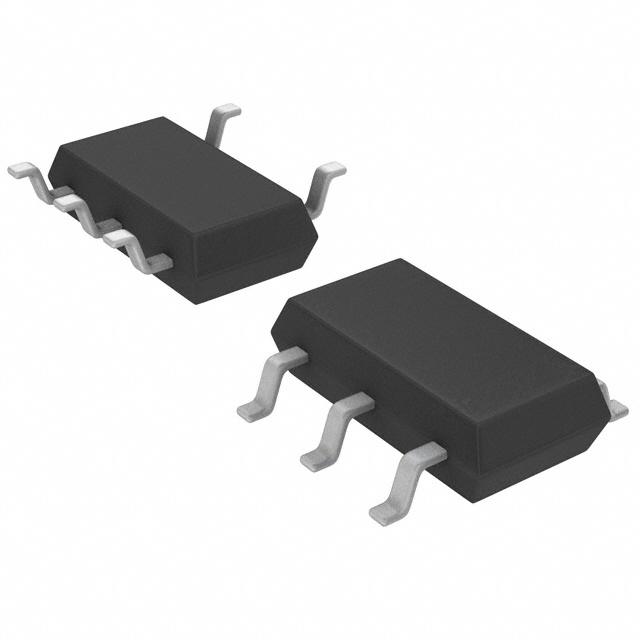

LINEAR TECHNOLOGY  LT6003HS5#TRMPBF  运算放大器, 单路, 3 kHz, 1个放大器, 0.0013 V/µs, 1.6V 至 16V, TSOT-23, 5 引脚

The is a single Operational Amplifier designed to maximize battery life and performance for portable applications. The amplifier operate on supplies as low as 1.6V and are fully specified and guaranteed over temperature on 1.8, 5 and ±8V supplies while only drawing 1µA maximum quiescent current. The ultralow supply current and low operating voltage are combined with excellent amplifier specifications, input offset voltage of 500µV maximum with a typical drift of only 2µV/°C, input bias current of 90pA maximum, open loop gain of 100,000 and the ability to drive 500pF capacitive loads, making the LT6003 amplifiers ideal when excellent performance is required in battery powered applications.

.

1µA/Amplifier Maximum low supply current

.

90pA Maximum low input bias current

.

500µV Maximum low input offset voltage

.

2µV/°C Low input offset voltage drift

.

100dB CMRR

.

95dB PSRR

.

100,000 Minimum AVOL driving 20kR load

.

500pF Capacitive load handling
