TEXAS INSTRUMENTS LM4562MAX/NOPB 音频功率放大器, 2通道, ± 2.5V 至 ± 17V, SOIC, 8 引脚 新
The LM4562 is part of the ultra-low distortion, low-noise, high-slew-rate operational amplifier series optimized and fully specified for high-performance, high-fidelity applications. The LM4562 audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance. The LM4562 combines extremely low voltage noise density 2.7nV/√Hz with vanishingly low THD+N 0.00003% to easily satisfy the most demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LM4562 has a high slew rate of ±20V/µs and an output current capability of ±26mA. Further, dynamic range is maximized by an output stage that drives 2kΩ loads to within 1V of either power supply voltage and to within 1.4V when driving 600Ω loads.
The LM4562"s outstanding CMRR 120dB, PSRR 120dB, and VOS 0.1mV give the amplifier excellent operational amplifier DC performance.
The LM4562 has a wide supply range of ±2.5V to ±17V. Over this supply range the LM4562’s input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LM4562 is unity gain stable. This Audio Operational Amplifier achieves outstanding AC performance while driving complex loads with values as high as 100pF.
The LM4562 is available in an 8-lead narrow body SOIC, an 8-lead PDIP, and an 8-lead TO-99.
输出电流 42.0 mA
供电电流 10 mA
电路数 2
通道数 2
针脚数 8
共模抑制比 110dB ~ 120dB
转换速率 20.0 V/μs
增益频宽积 55 MHz
输入补偿电压 100 µV
输入偏置电流 10 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
共模抑制比Min 110 dB
电源电压 2.5V ~ 16.5V
电源电压Max 34 V
电源电压Min 5 V
安装方式 Surface Mount
引脚数 8

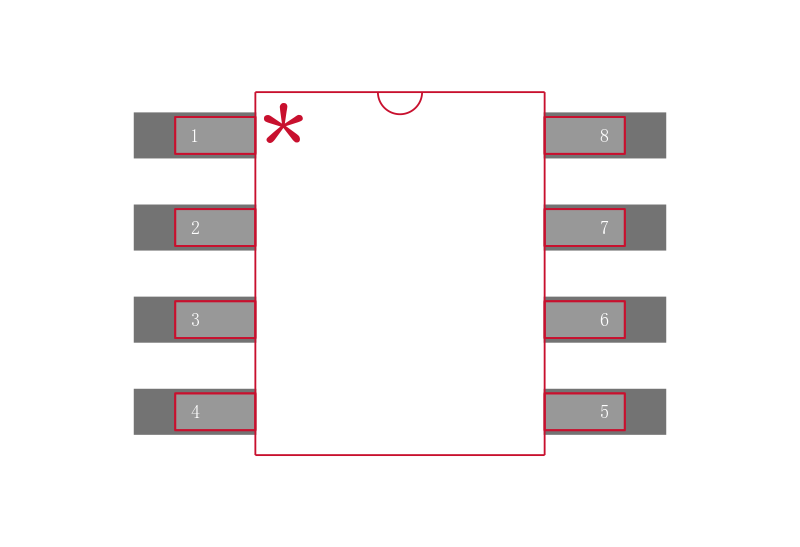

封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.45 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4562MAX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM4562MAX 德州仪器 | 完全替代 | LM4562MAX/NOPB和LM4562MAX的区别 |
LM833M/NOPB 德州仪器 | 类似代替 | LM4562MAX/NOPB和LM833M/NOPB的区别 |
LM4562MA/NOPB 德州仪器 | 类似代替 | LM4562MAX/NOPB和LM4562MA/NOPB的区别 |
