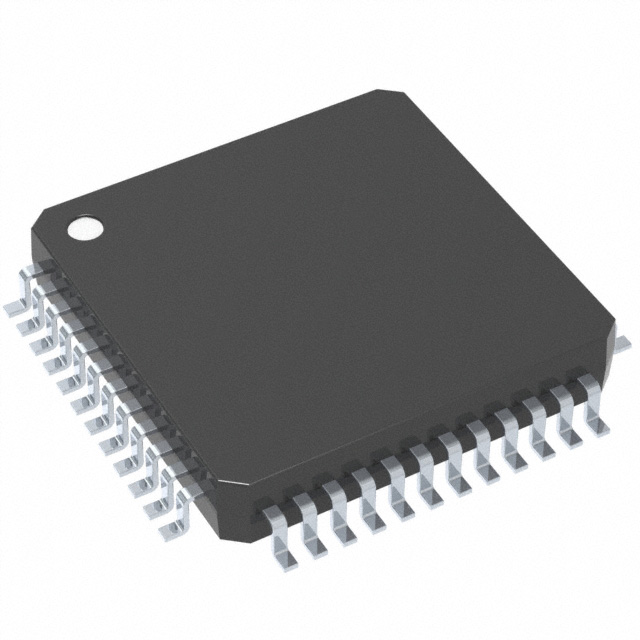

TEXAS INSTRUMENTS LM3S613-EQN50-C2 32Bit Microcontroller, ARM Cortex-M3, 50MHz, 32KB, 8KB, 48Pins, QFN

The is a Stellaris® 32-bit Microcontroller based on the ARM Cortex-M3 RISC core operating at up to 50MHz, with 32kB flash and 8kB SRAM. The device features real-time industrial connectivity, with an SSI/SPI controller, an I2C interface and 2 UARTs. The device also features advanced motion control features, including 4 motion-control PWM outputs with dead-band and 1 fault protection inputs for low-latency shutdown. The microcontroller also features intelligent analog capability, including 1 analog comparators and 4 channels of highly accurate 10-bit analog-to-digital conversion - with the ability to sample at speeds of 500K samples per second. The LM3S613 microcontroller provides a 24-bit systick timer, 3 32-bit or 6 16-bit general-purpose timers, a watchdog timer, a low drop-out voltage regulator so that only one supply voltage is required, brown-out reset, power-on reset controller and up to 32 GPIOs.

.

32-bit ARM Cortex-M3 v7M architecture 50MHz operation

.

System timer, providing a simple, 24-bit clear-on-write, decrementing, wrap-on-zero counter

.

Thumb®-compatible Thumb-2-only instruction set processor core

.

Hardware-division and single-cycle-multiplication

.

Integrated nested vectored interrupt controller NVIC

.

25 Interrupts with eight priority levels

.

Memory protection unit MPU

.

Unaligned data access, enabling data to be efficiently packed into memory

.

ARM Thumb mixed 16-/32-bit instruction set

.

Serial wire JTAG debug port SWJ-DP

.

Three sleep modes with clock gating for low power

.

IEEE 1149.1-1990 compatible test access port TAP controller

.

Three general-purpose timer modules GPTM

.

General-purpose timer function with an 8-bit prescaler

.

16-bit Input capture modes

.

16-bit PWM mode

.

ARM FiRM-compliant watchdog timer

.

Two fully programmable 16C550-type UARTs

.

Synchronous serial interface SSI - master or slave operation

.

I2C modules - two transmission speeds standard 100Kbps and fast 400Kbps
