TEXAS INSTRUMENTS LMV344MT/NOPB 芯片, 运算放大器, 1MHZ, 1V/uS, TSSOP-14
The LMV34x-N devices are single, dual, and quad low-voltage, low-power operational amplifiers. They are designed specifically for low-voltage portable applications. Other important product characteristics are low input bias current, rail-to-rail output, and wide temperature range.
The patented class AB turnaround stage significantly reduces the noise at higher frequencies, power consumption, and offset voltage. The PMOS input stage provides the user with ultra-low input bias current of 20 fA typical and high input impedance.
The industrial-plus temperature range of 40°C to 125°C allows the LMV34x-N to accommodate a broad range of extended environment applications. LMV341-N expands Texas Instruments Silicon Dust amplifier portfolio offering enhancements in size, speed, and power savings. The LMV34x-N devices are specified to operate over the voltage range of 2.7 V to 5.5 V and all have rail-to-rail output.
The LMV341-N offers a shutdown pin that can be used to disable the device. Once in shutdown mode, the supply current is reduced to 45 pA typical. The LMV34x-N devices have 29-nV voltage noise at 10 KHz, 1 MHz GBW, 1-V/µs slew rate, 0.25 mVos, and 0.1-µA shutdown current LMV341-N.
The LMV341-N is offered in the tiny 6-pin SC70 package, the LMV342-N in space-saving 8-pin VSSOP and SOIC packages, and the LMV344-N in 14-pin TSSOP and SOIC packages. These small package amplifiers offer an ideal solution for applications requiring minimum PCB footprint. Applications with area constrained PCB requirements include portable electronics such as cellular handsets and PDAs.
输出电流 75.0 mA
供电电流 107 µA
电路数 1
通道数 4
针脚数 14
共模抑制比 56 dB
输入补偿漂移 1.90 µV/K
带宽 1 MHz
转换速率 1.00 V/μs
增益频宽积 1 MHz
输入补偿电压 700 µV
输入偏置电流 0.02 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 1 MHz
共模抑制比Min 56 dB
电源电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 14

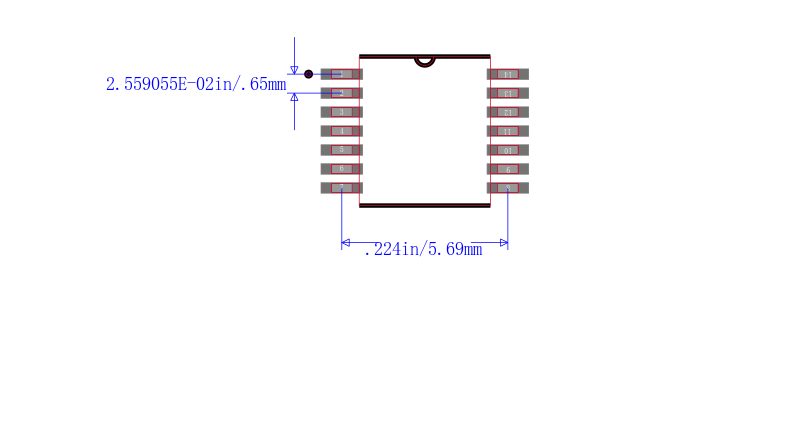

封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMV344MT/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMV344IPWR 德州仪器 | 类似代替 | LMV344MT/NOPB和LMV344IPWR的区别 |
LMV344MTX/NOPB 德州仪器 | 类似代替 | LMV344MT/NOPB和LMV344MTX/NOPB的区别 |
LMV344IPW 德州仪器 | 类似代替 | LMV344MT/NOPB和LMV344IPW的区别 |
