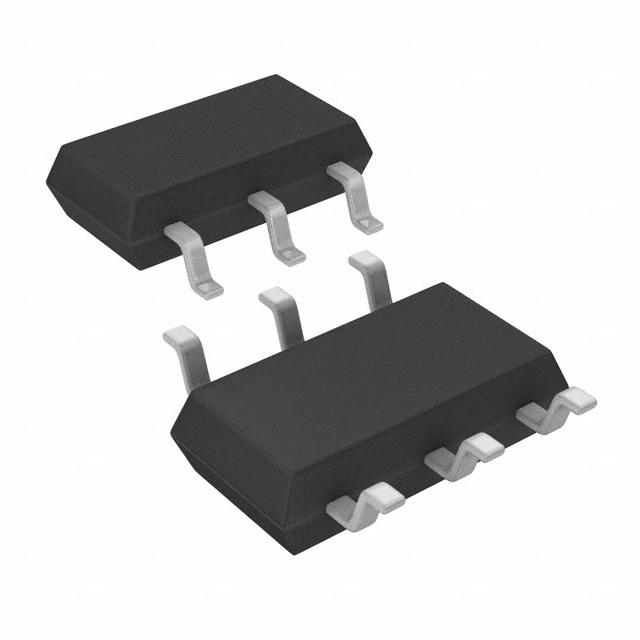

LTC2050 - Zero-Drift Operational Amplifiers in SOT-23; Package: SOT; Pins: 6; Temperature Range: -40℃ to 125℃
If you are in need of better sound quality within your electronic circuit, look no further than the zero drift amplifier differential amplifier from . It has a rail to rail output. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has a single channel per chip. This device uses a single power supply.
供电电流 800 µA
电路数 1
通道数 1
转换速率 2.00 V/μs
增益频宽积 3 MHz
输入补偿电压 .5 µV
输入偏置电流 25 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 3 MHz
共模抑制比Min 120 dB
电源电压 2.7V ~ 6V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
高度 0.9 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC2050HS6#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2050HS6#TRPBF 凌力尔特 | 类似代替 | LTC2050HS6#TRMPBF和LTC2050HS6#TRPBF的区别 |
