LTC6255IDC#TRMPBF

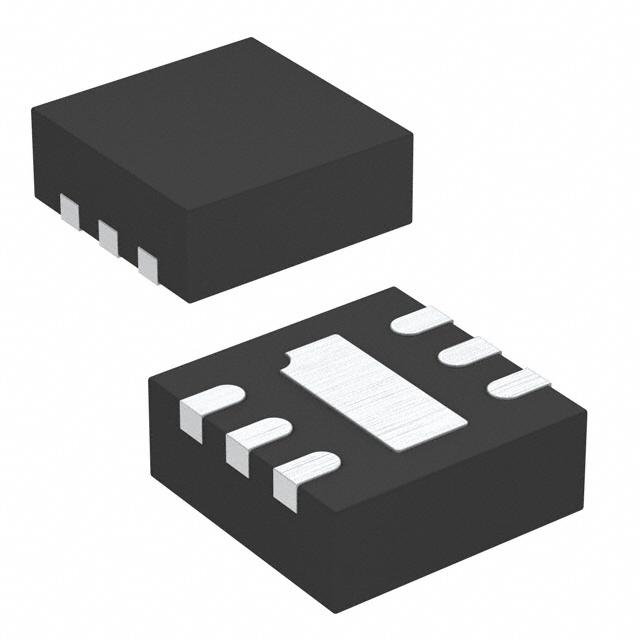

LINEAR TECHNOLOGY  LTC6255IDC#TRMPBF  运算放大器, 轨至轨, 6.5 MHz, 1个放大器, 1.8 V/µs, 1.8V 至 5.25V, DFN, 6 引脚

The is a 6.5MHz, 65µA power efficient rail-to-rail I/O op-amp in 6 pin DFN package. The LTC6255 is a single operational amplifier with low noise, low power, low supply voltage and rail-to-rail inputs and outputs. It is a unity gain stable with or without capacitive loads. It feature 6.5MHz gain-bandwidth product, 1.8V/µs slew rate while consuming only 65µA of supply current per amplifier. The combination of low supply current, low supply voltage, high gain bandwidth product and low noise makes the LTC6255 family unique among rail-to-rail input/output op amp with similar supply current. This operational amplifier is ideal for low power and low noise applications and also for applications that require power-down. The LTC6255 offer shutdown which reduces the current consumption to 7µA maximum such as micropower active filters, portable instrumentation, battery or solar powered systems and automotive electronics.

.

Supply voltage range from 1.8V to 5.25V

.

-3dB bandwidth AV = +1 is 4.5MHz

.

C-load op amp drives all capacitive loads

.

Offset voltage is 350µV maximum

.

Input offset voltage drift is 1.5µV/°C

.

Rail-to-rail input and output

.

Operating temperature range from -40°C to 85°C
