LT6105HMS8#PBF

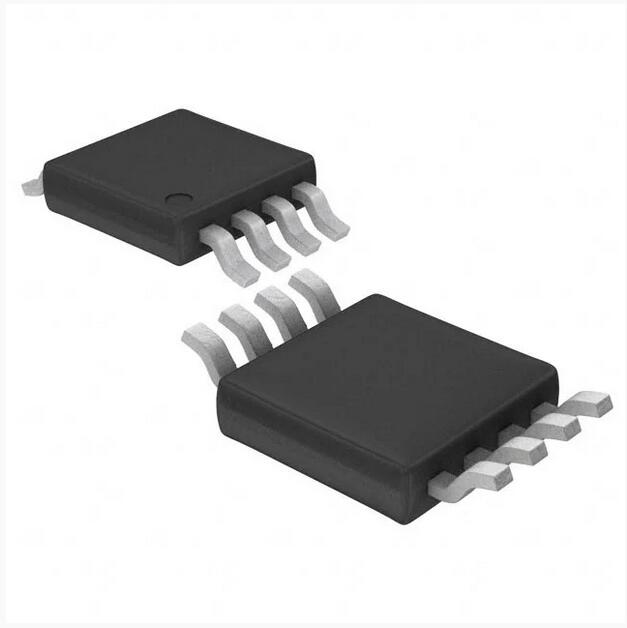

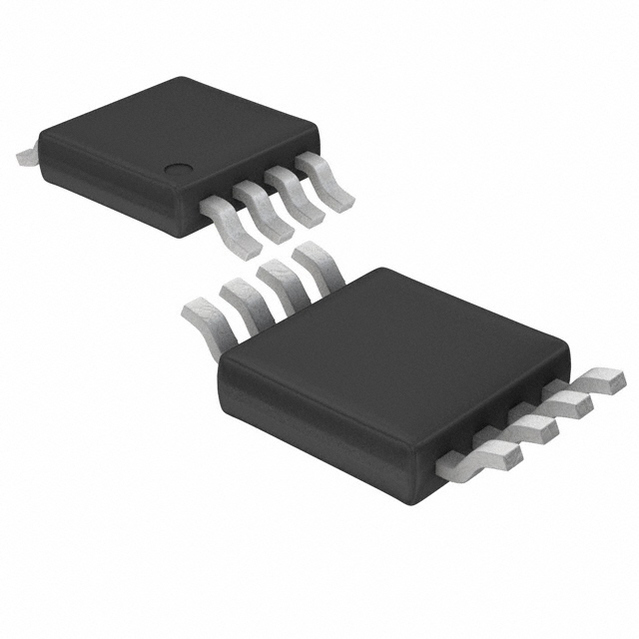

LINEAR TECHNOLOGY  LT6105HMS8#PBF  电流检测放大器, 扩展输入范围, 1个放大器, MSOP, 8 引脚, -40 °C, 125 °C

The is a micropower precision Current Sense Amplifier with a very wide input common mode range. The LT6105 monitors unidirectional current via the voltage across an external sense resistor. The input common mode range extends from -0.3 to 44V, with respect to the negative supply voltage V-. This allows the LT6105 to operate as a high side current sense monitor or a low side current sense monitor. It also allows the LT6105 to monitor current on a negative supply voltage, as well as continuously monitor a battery from full charge to depletion. The inputs of LT6105 can withstand differential voltages up to ±44V, which makes it ideal for monitoring a fuse or MOSFET switch. Gain is configured with external resistors from 1V/V to 100V/V. The input common mode rejection and power supply rejection are in excess of 100dB and the input offset voltage is less than 300µV. A typical slew rate of 2V/µs ensures fast response to unexpected current changes.

.

Gain configurable with external resistors

.

1mA Minimum full-scale output current

.

1nA Sense input current when powered down

.

2V/µs Slew rate

.

150µA Operating current

.

1% Maximum gain accuracy
