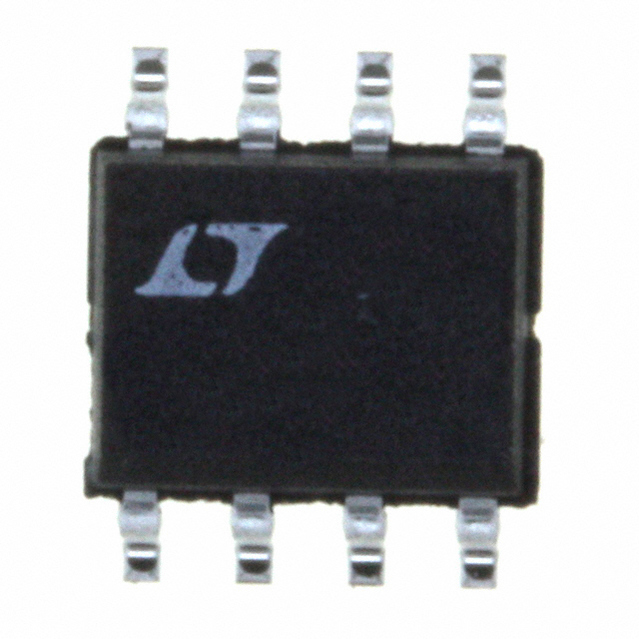

LT1819CS8#PBF

LINEAR TECHNOLOGY  LT1819CS8#PBF  运算放大器, 双路, 400 MHz, 2个放大器, 2500 V/µs, ± 2V 至 ± 5.5V, SOIC, 8 引脚

The is a dual wide bandwidth high slew rate low noise/distortion Operational Amplifier with excellent DC performance. The circuit topology is a voltage feedback amplifier with the excellent slewing characteristics of a current feedback amplifier. The output drives a 100R load to ±3.8 with ±5V supplies. On a single 5V supply, the output swings from 1 to 4V with a 100R load connected to 2.5V. The amplifier is unity-gain stable with a 20pF capacitive load without the need for a series resistor. Harmonic distortion is -85dBc up to 5MHz for a 2VP-P output at a gain of 2.

.

9mA Supply current per amplifier

.

6nV/√Hz Input noise voltage

.

Unity-gain stable

.

1.5mV Maximum input offset voltage

.

8µA Maximum input bias current

.

800nA Maximum input offset current

.

Specified at ±5V, single 5V supplies
