LTC6103CMS8#PBF

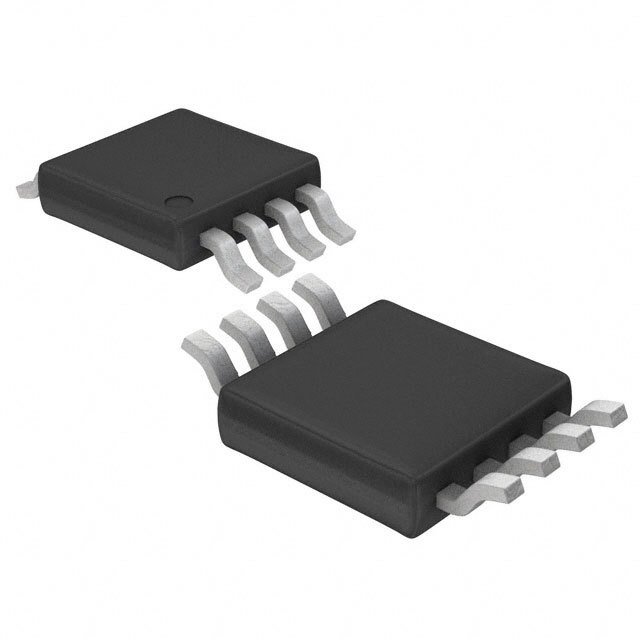

LINEAR TECHNOLOGY  LTC6103CMS8#PBF  电流检测放大器, 双路高电压, 2个放大器, 170 nA, MSOP, 8 引脚, -40 °C, 85 °C

The is a versatile high voltage high side Dual Current Sense Amplifier for use with battery monitoring and remote sensing. The two internal amplifiers are independent except that they share the same V- terminal. Design flexibility is provided by the excellent device characteristics of 450µV maximum offset and only 275µA of current consumption typical at 12V for each amplifier. The LTC6103 operates on supplies from 4 to 60V. The LTC6103 monitors current via the voltage across an external sense resistor shunt resistor. Internal circuitry converts input voltage to output current, allowing for a small sense signal on a high common mode voltage to be translated into a ground referenced signal. Low DC offset allows the use of a small shunt resistor and large gain-setting resistors. As a result, power loss in the shunt is minimal. The fast response makes the LTC6103 the perfect choice for load current warnings and shutoff protection control.

.

Two independent current sense amplifier

.

Gain configurable with external resistors

.

1µs Fast response time

.

1mA Maximum output current

.

110dB Minimum PSRR

.

275µA at 12V low supply current per amplifier
