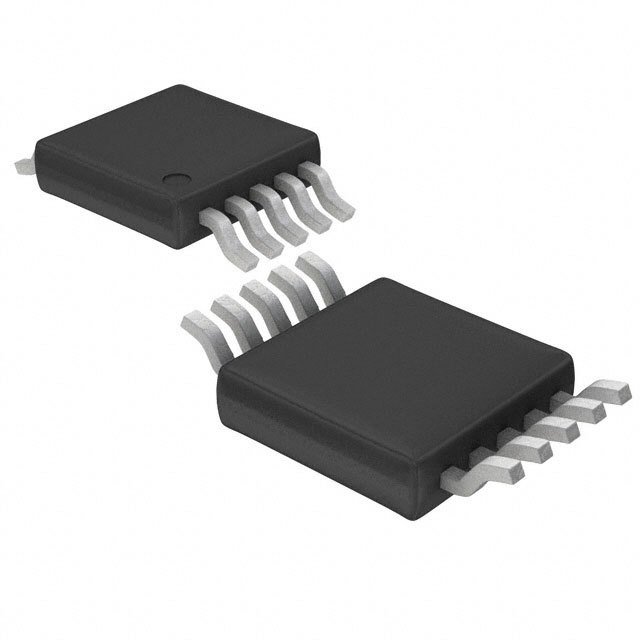

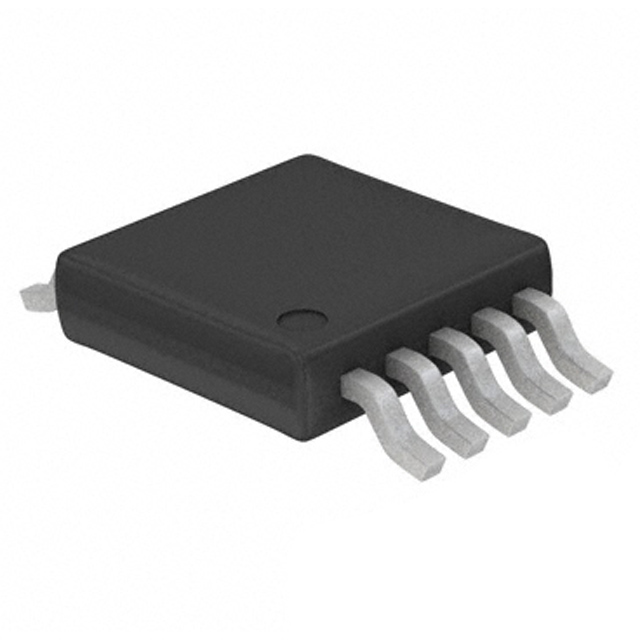

LINEAR TECHNOLOGY LTC6256CMS#PBF Operational Amplifier, Dual, 2 Amplifier, 6.5MHz, 1.8V/µs, 1.8V to 5.25V, MSOP, 10Pins
The large amount of gain, or amplification, produced by this general purpose amplifier OP amp from make it a commonly used component in nearly all electronics today. This op amp has a temperature range of 0 °C to 70 °C. It has 2 channels per chip. This device utilizes bipolar technology. This device uses a single power supply.
输出电流 ≤20 mA
供电电流 65 µA
电路数 2
带宽 6.5 MHz
转换速率 1.80 V/μs
增益频宽积 6.5 MHz
输入补偿电压 100 µV
输入偏置电流 5 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
3dB带宽 4.5 MHz
共模抑制比Min 75 dB
电源电压 1.8V ~ 5.25V
安装方式 Surface Mount

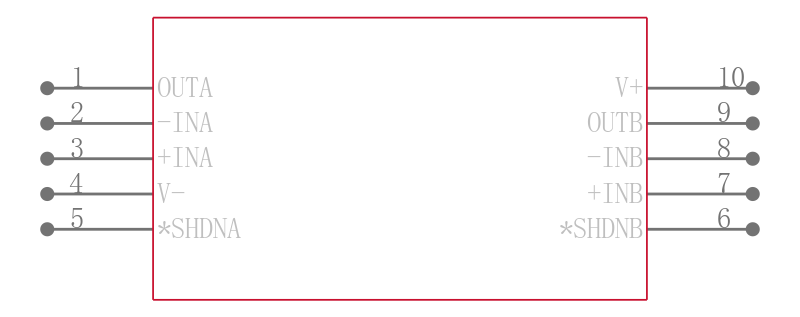

引脚数 10

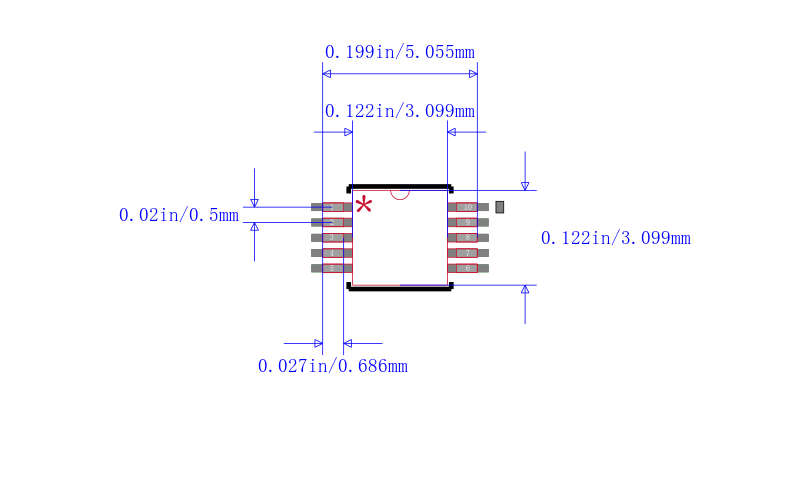

封装 MSOP-10
高度 0.86 mm
封装 MSOP-10
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC6256CMS#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC6256CMS#TRPBF 凌力尔特 | 完全替代 | LTC6256CMS#PBF和LTC6256CMS#TRPBF的区别 |
LTC6256IMS#TRPBF 凌力尔特 | 完全替代 | LTC6256CMS#PBF和LTC6256IMS#TRPBF的区别 |
