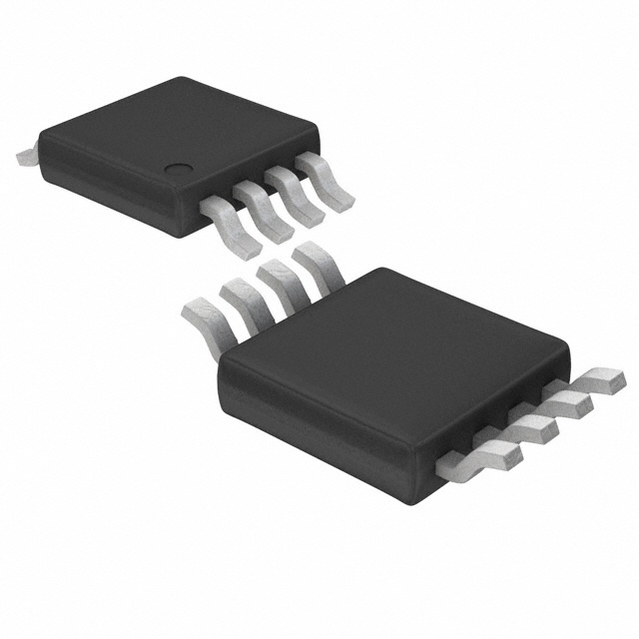

LT6011IMS8#PBF

LINEAR TECHNOLOGY  LT6011IMS8#PBF  运算放大器, 双路, 330 kHz, 2个放大器, 0.09 V/µs, 2.4V 至 40V, MSOP, 8 引脚

The is an Operational Amplifier combine low noise and high precision input performance with low power consumption and rail-to-rail output swing. Input offset voltage is trimmed to less than 60µV. The low drift and excellent long-term stability guarantee a high accuracy over temperature and time. The 300pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions. The LT6011 work on any power supply voltage from 2.7 to 36V and draw only 135µA of supply current on a 5V supply. The output swings to within 40mV of either supply rail, making the amplifier a good choice for low voltage single supply applications. The LT6011 is specified at 5 and ±15V supplies and from -40 to 85°C.

.

135µA Supply current per amplifier

.

120dB Minimum voltage gain, VS = ±15V

.

0.8µV/°C Maximum VOS drift

.

14nV/√Hz Input noise voltage
