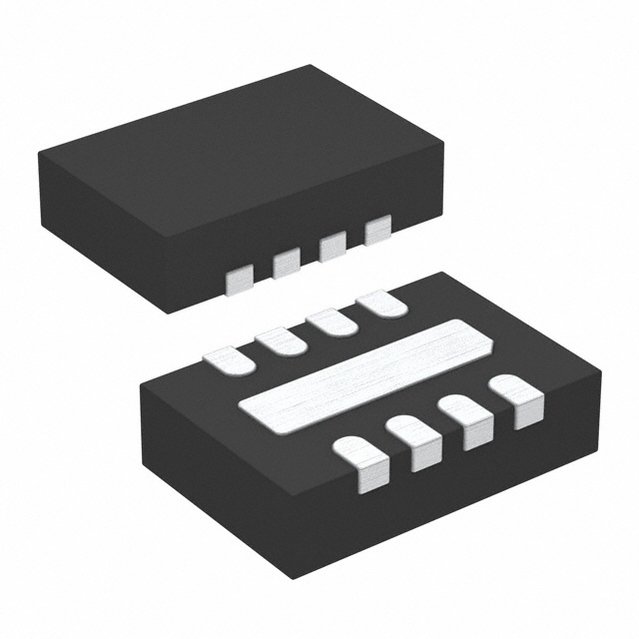

LINEAR TECHNOLOGY LTC6102CDD-1#PBF Current Sense Amplifier, Precision Zero Drift, 1 Amplifier, 3nA, DFN, 8Pins, 0 °C, 70℃
If you are in need of better sound quality within your electronic circuit, look no further than the current sense amplifier differential amplifier from . This part has a temperature range of 0 °C to 70 °C. It has a single channel per chip. This device uses a single power supply.
电源电压DC 4.00V min
供电电流 420 µA
电路数 1
带宽 200 kHz
输入补偿电压 10 µV
输入偏置电流 3000 pA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压Max 60 V
电源电压Min 4 V
安装方式 Surface Mount
引脚数 8
封装 DFN-8
高度 0.75 mm
封装 DFN-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC6102CDD-1#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC6102CDD-1#TRPBF 凌力尔特 | 类似代替 | LTC6102CDD-1#PBF和LTC6102CDD-1#TRPBF的区别 |
