SP Amp Variable Gain Amp Single R-R O/P ±18V/36V Automotive 10Pin DFN EP
Think of "s programmable gain amplifier differential amplifier the next time you are receiving unwanted sound distortion within your project. It has a rail to rail output. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±1.35 V and maximum of ±18 V. This part has a minimum operating temperature of 0 °C and a maximum of 70 °C. It has a single channel per chip. This device uses one or two power supplies.
供电电流 130 µA
电路数 1
转换速率 120 mV/μs
增益频宽积 0.56 MHz
输入补偿电压 15 µV
输入偏置电流 2.5 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
3dB带宽 110 kHz
增益带宽 560 kHz
共模抑制比Min 75dB ~ 85dB
电源电压Max 30V ~ 50V
安装方式 Surface Mount
引脚数 10

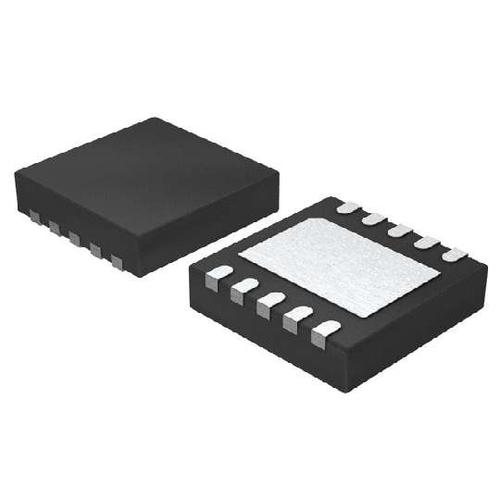

封装 DFN-10
高度 0.75 mm
封装 DFN-10
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1991ACDD#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1991ACDD#TRPBF 凌力尔特 | 类似代替 | LT1991ACDD#PBF和LT1991ACDD#TRPBF的区别 |
