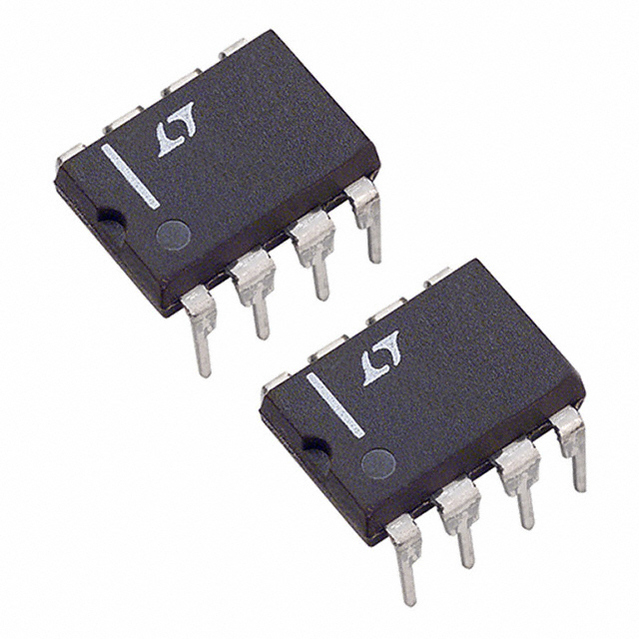

LT1167CN8#PBF

LINEAR TECHNOLOGY  LT1167CN8#PBF  可编程/可变增益放大器, 1个放大器, 1 MHz, 0 °C, 70 °C, ± 2.3V 至 ± 18V

The is a low power precision Instrumentation Amplifier that requires only one external resistor to set gains of 1 to 10000. The low voltage noise of 7.5nV/√Hz at 1kHz is not compromised by low power dissipation 0.9mA typical for ±2.3 to ±15V supplies. The part"s high accuracy 10ppm maximum non-linearity, 0.08% max gain error G = 10 is not degraded even for load resistors as low as 2k. The LT1167 is laser trimmed for very low input offset voltage 40µV max, drift 0.3µV/°C, high CMRR 90dB, G = 1 and PSRR 105dB, G = 1. Low input bias currents of 350pA max are achieved with the use of superbeta processing. The output can handle capacitive loads up to 1000pF in any gain configuration while the inputs are ESD protected up to 13kV human body. The LT1167 with two external 5k resistors passes the IEC 1000-4-2 level 4 specification.

.

Single gain set resistor G = 1 to 10000

.

0.08% Maximum gain error G = 10

.

0.3µV/°C Maximum input offset voltage drift

.

Meets IEC 1000-4-2 level 4 ESD tests with two external 5k resistors

.

10ppm Maximum gain non-linearity G = 10

.

350pA Maximum input bias current

.

105dB Minimum PSRR at G = 1

.

90dB Minimum CMRR at G = 1

.

1.3mA Maximum supply current

.

1kHz Voltage noise 7.5nV/√Hz

.

0.1 to 10Hz Noise 0.28µVP-P
