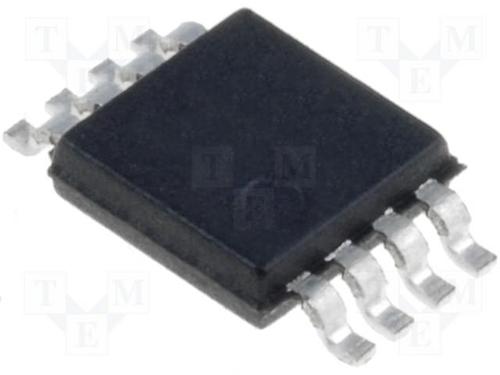

LT1787HVCMS8#PBF

LINEAR TECHNOLOGY  LT1787HVCMS8#PBF  电流检测放大器, 精准, 1个放大器, MSOP, 8 引脚, -40 °C, 85 °C

The is a complete micropower precision high side Current Sense Amplifier for use with power monitoring and battery-operated systems. The LT1787 monitor bidirectional currents via the voltage across an external sense resistor. A current or voltage output indicates the direction and magnitude of the sense current. The LT1787 delivers greater than a 12-bit dynamic range with ultralow 40µV input offset voltage compared to a typical 250mV full scale input voltage. A fixed gain of 8 is set by on board precision resistors. Input signal filtering is easily implemented with a capacitor between the FIL-and FIL+ pins. The LT1787HV operates from 2.5 to 60V total supply voltage. It has a PSRR in excess of 120dB.

.

User-selectable external sense resistor

.

Bidirectional high side current sensing

.

Input noise filtering

.

12-bit Dynamic range

.

60µA Operating current
