LT1124CN8#PBF

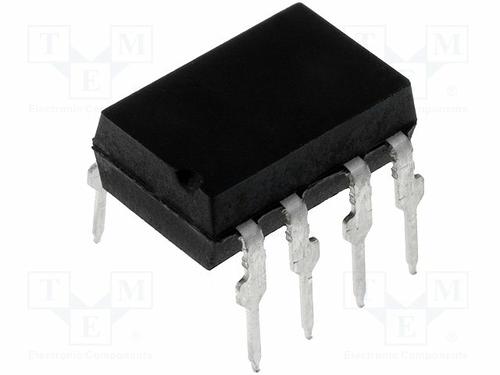

LINEAR TECHNOLOGY  LT1124CN8#PBF  运算放大器, 双路, 12.5 MHz, 2个放大器, 4.5 V/µs, ± 4V 至 ± 18V, DIP, 8 引脚

The is a dual high performance Operational Amplifier that offer higher gain, slew rate and bandwidth than the industry standard OP-27 and competing OP‑270/OP-470 op amps. In the design, processing and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Slew rate, gain bandwidth and 1kHz noise are 100% tested for each individual amplifier. Consequently, the specifications of even the lowest cost grades the LT1124C have been spectacularly improved compared to equivalent grades of competing amplifiers. Power consumption of the LT1124 is one-half of two OP-27s.

.

5 million Minimum high voltage gain

.

2.75mA Maximum supply current per amplifier

.

112dB Minimum common mode rejection

.

116dB Minimum power supply rejection
