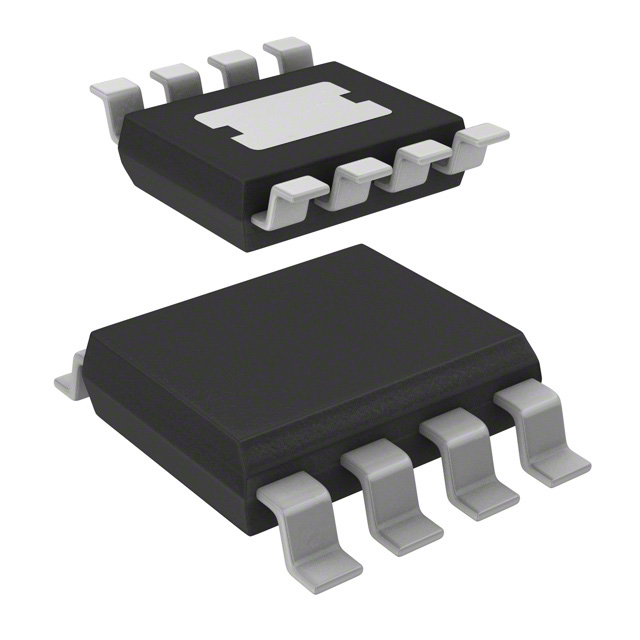

LTC6090CS8E#PBF

运算放大器, 轨至轨输出, 1个放大器, 12 MHz, 21 V/µs, 9.5V至140V, NSOIC, 8 引脚

The from is a 140V CMOS rail to rail output, picoamp input current operational amplifier in 8 lead plastic SO package. The high voltage, precision monolithic operational amplifier is unity gain stable. Amplifier features high open loop gain, low input referred offset voltage and noise and pA input bias current and are ideal for high voltage, high impedance buffering and/or high gain configurations. The amplifier is internally protected against over temperature conditions. This amplifier may run from a single 140V or spit ±70V power supplies and are capable of driving up to 200pF of load capacitance. It is used in ATE, piezo drivers, photodiode amplifier, high voltage regulators and optical networking.

.

±330µV input offset voltage

.

±3µV/°C input offset voltage drift

.

3pA input bias current at supply voltage = ±70V, TJ = 25°C

.

Input noise voltage density of 14nV/√Hz at f = 1KHz, TJ = 25°C

.

3.5µVP-P input noise voltage at 0.1Hz to 10Hz, TJ = 25°C

.

±68V input common mode range at TJ = 25°C

.

Common mode rejection ratio of >140 at VCM = -67V to 67V, TJ = 25°C

.

Power supply rejection ratio of >120dB at VS = ±4.75V to ±70V, TJ = 25°C

.

Large signal voltage gain of >10000V/mV at RL = 10K, TJ = 25°C

.

Operating temperature range from 0°C to 70°C
