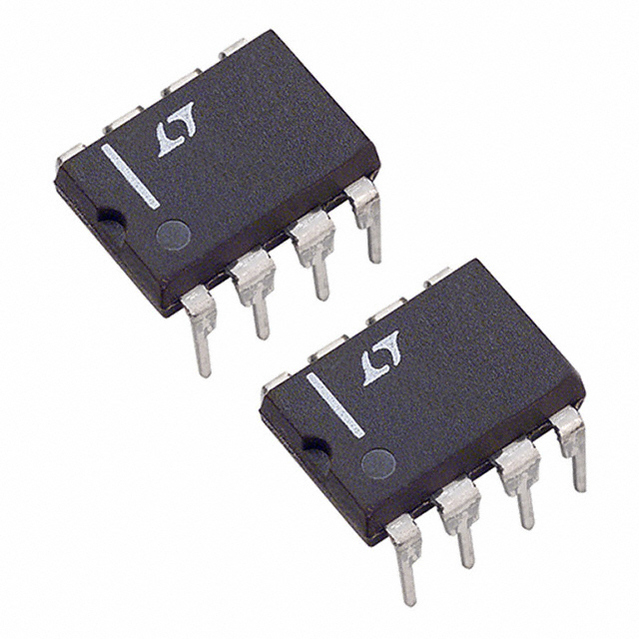

LT1352CN8#PBF

LINEAR TECHNOLOGY  LT1352CN8#PBF  运算放大器, 双路, 3 MHz, 2个放大器, 200 V/µs, ± 2.5V 至 ± 15V, DIP, 8 引脚

The is a dual very low power high speed Operational Amplifier with outstanding AC and DC performance. The amplifier feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit combines the slewing performance of a current feedback amplifier in a true operational amplifier with matched high impedance inputs. The high slew rate ensures that the large-signal bandwidth is not degraded. Each output is capable of driving a 1kW load to ±13 with ±15V supplies and a 500W load to ±3.4 on ±5V supplies. The LT1352 is members of a family of fast, high performance amplifiers using this unique topology and employing Corporation"s advanced complementary bipolar processing.

.

250µA Supply current

.

C-Load™ op amp drives all capacitive loads

.

Unity-gain stable

.

600mV Maximum input offset voltage

.

50nA Maximum input bias current

.

15nA Maximum input offset current

.

14nV/√Hz Input noise voltage
