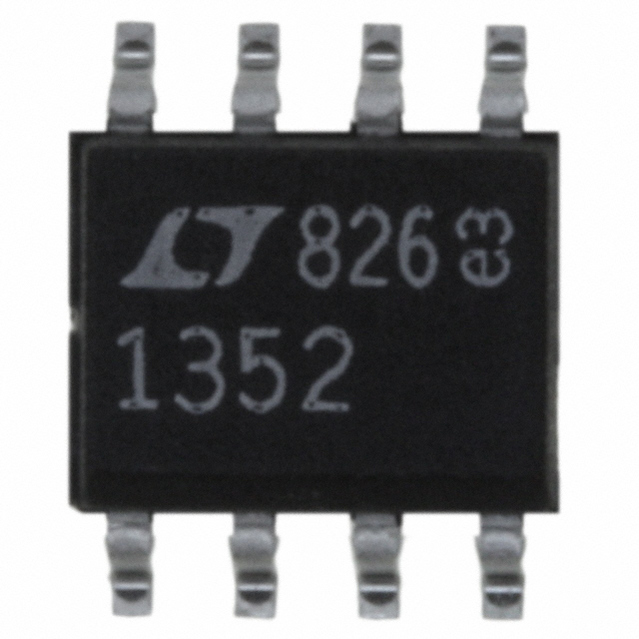

LINEAR TECHNOLOGY LT1352CS8#PBF 运算放大器, 双路, 3 MHz, 2个放大器, 200 V/µs, ± 2.5V 至 ± 15V, SOIC, 8 引脚
The is a dual very low power high speed Operational Amplifier with outstanding AC and DC performance. The amplifier feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit combines the slewing performance of a current feedback amplifier in a true operational amplifier with matched high impedance inputs. The high slew rate ensures that the large-signal bandwidth is not degraded. Each output is capable of driving a 1kW load to ±13 with ±15V supplies and a 500W load to ±3.4 on ±5V supplies. The LT1352 is members of a family of fast, high performance amplifiers using this unique topology and employing Corporation"s advanced complementary bipolar processing.
供电电流 250 µA
电路数 2
通道数 2

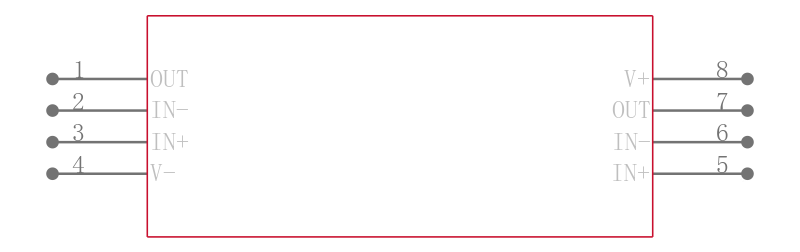

针脚数 8
带宽 3 MHz
转换速率 200 V/μs
增益频宽积 2.7 MHz
输入补偿电压 200 µV
输入偏置电流 20 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 3 MHz
共模抑制比Min 75dB ~ 80dB
电源电压 5V ~ 36V
电源电压Max 36V ~ 37V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, Test & Measurement, 测试与测量, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1352CS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1352CS8#TRPBF 凌力尔特 | 类似代替 | LT1352CS8#PBF和LT1352CS8#TRPBF的区别 |
LT1352IS8#PBF 凌力尔特 | 类似代替 | LT1352CS8#PBF和LT1352IS8#PBF的区别 |
LT1352IS8#TRPBF 凌力尔特 | 类似代替 | LT1352CS8#PBF和LT1352IS8#TRPBF的区别 |
