LTC2053HDD#PBF

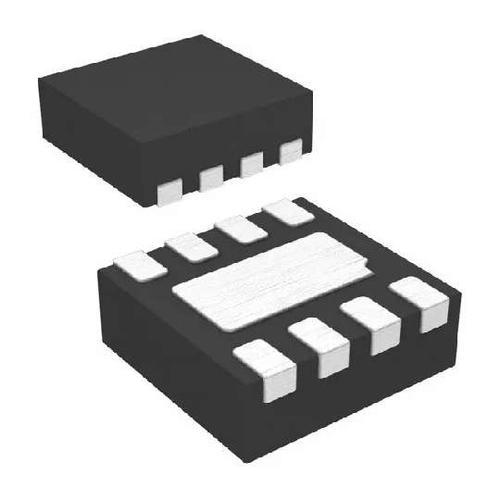

LINEAR TECHNOLOGY  LTC2053HDD#PBF  仪器放大器, 1个放大器, -5 µV, 0.2 V/µs, 200 kHz, 2.7V 至 11V, DFN

The is a high precision Instrumentation Amplifier for use with electronic scales and strain gauge amplifiers. The CMRR is typically 116dB with a single or dual 5V supply and is independent of gain. The input offset voltage is guaranteed below 10µV with a temperature drift of less than 50nV/°C. The LTC2053 is easy to use, the gain is adjustable with two external resistors, like a traditional operational amplifier. The LTC2053 uses charge balanced sampled data techniques to convert a differential input voltage into a single ended signal that is in turn amplified by a zero-drift operational amplifier. The differential inputs operate from rail-to-rail and the single-ended output swings from rail-to-rail. The LTC2053 can be used in single-supply applications, as low as 2.7V.

.

Rail-to-rail input

.

2-resistor Programmable gain

.

116dB CMRR independent of gain

.

50nV/°C Maximum offset voltage drift

.

2.5µVp-p 0.01Hz to 10Hz Typical noise

.

750µA Typical supply current
