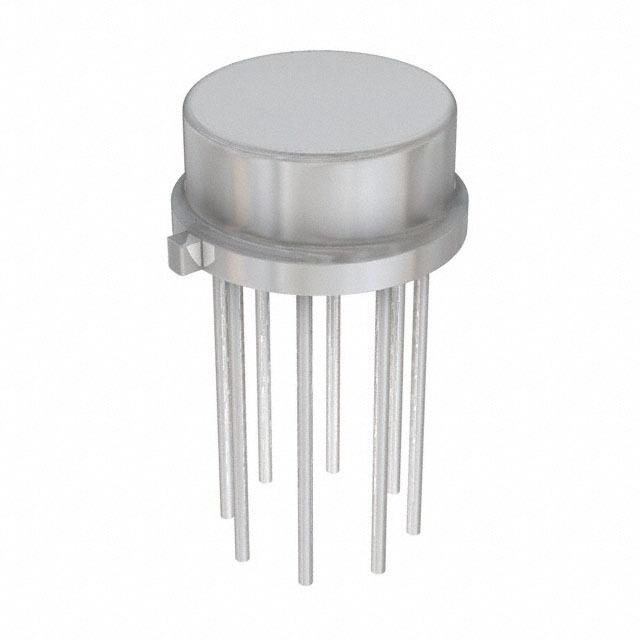

运算放大器 8-TO-99 -40 to 85
通用 放大器 1 电路 - TO-5-8
得捷:
IC OPAMP GP 1 CIRCUIT TO99-8
立创商城:
LM201AH/NOPB
德州仪器TI:
Operational Amplifier
艾睿:
Amplify signals with this simple general purpose amplifier LM201AH/NOPB OP amp from Texas Instruments. Its maximum power dissipation is 1200 mW. Its typical dual supply voltage is ±9|±12|±15|±18 V, with a minimum of ±5 V and maximum of ±22 V. This op amp has a temperature range of -40 °C to 85 °C. This device uses dual power supplies. It has a single channel per chip. This device utilizes bipolar technology.
安富利:
OP Amp Single GP ±22V 8-Pin TO-99 Box
Chip1Stop:
OP Amp Single GP ±22V 8-Pin TO-99 Box
Verical:
OP Amp Single GP ±22V 8-Pin TO-99 Box
Win Source:
IC OPAMP GP 1MHZ TO99-8
输出电流 25.0 mA
供电电流 1.8 mA
电路数 1
通道数 1
耗散功率 1.2 W
共模抑制比 80 dB
输入补偿漂移 3.00 µV/K
转换速率 500 mV/μs
增益频宽积 1 MHz
输入补偿电压 700 µV
输入偏置电流 30 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 1 MHz
耗散功率Max 1200 mW
共模抑制比Min 80 dB
安装方式 Through Hole
引脚数 8
封装 TO-99-8
封装 TO-99-8
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM201AH/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM101AH/NOPB 德州仪器 | 类似代替 | LM201AH/NOPB和LM101AH/NOPB的区别 |
LM101AH 德州仪器 | 类似代替 | LM201AH/NOPB和LM101AH的区别 |
LM201AH 德州仪器 | 类似代替 | LM201AH/NOPB和LM201AH的区别 |
