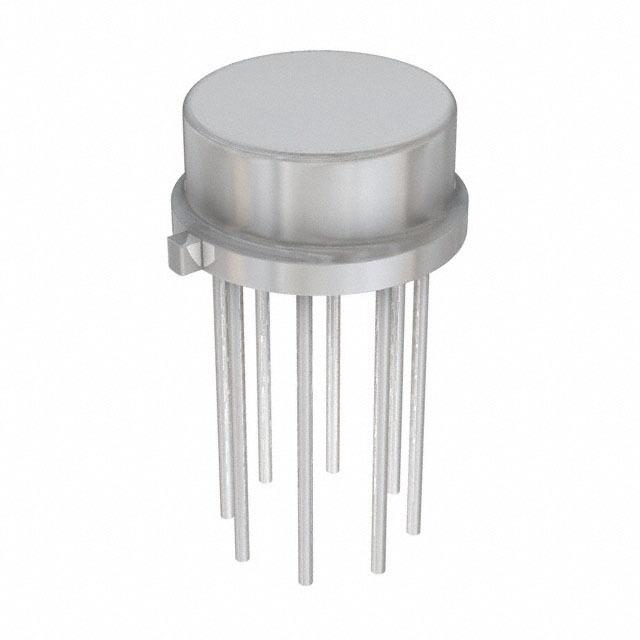

TEXAS INSTRUMENTS LM158H 运算放大器, 双路, 1 MHz, 2个放大器, 0.5 V/µs, 3V 至 32V, TO-99, 8 引脚
The is a low power dual Operational Amplifier designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems. For example, the LM158 series can be directly operated off of the standard 3.3V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
电源电压DC 5.00 V
输出电流 40mA @15V
供电电流 1 mA
电路数 2
通道数 2
针脚数 8
耗散功率 0.55 W
共模抑制比 70 dB
输入补偿漂移 7.00 µV/K
带宽 1 MHz
转换速率 500 mV/μs
增益频宽积 1 MHz
输入补偿电压 2 mV
输入偏置电流 45 nA
工作温度Max 125 ℃
工作温度Min -55 ℃
增益带宽 1 MHz
耗散功率Max 550 mW
共模抑制比Min 70 dB
电源电压 3V ~ 32V
电源电压Max 32 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 8
封装 TO-99-8
封装 TO-99-8
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM158H TI 德州仪器 | 当前型号 | 当前型号 |
LM358H/NOPB 德州仪器 | 类似代替 | LM158H和LM358H/NOPB的区别 |
LM258H/NOPB 德州仪器 | 类似代替 | LM158H和LM258H/NOPB的区别 |
