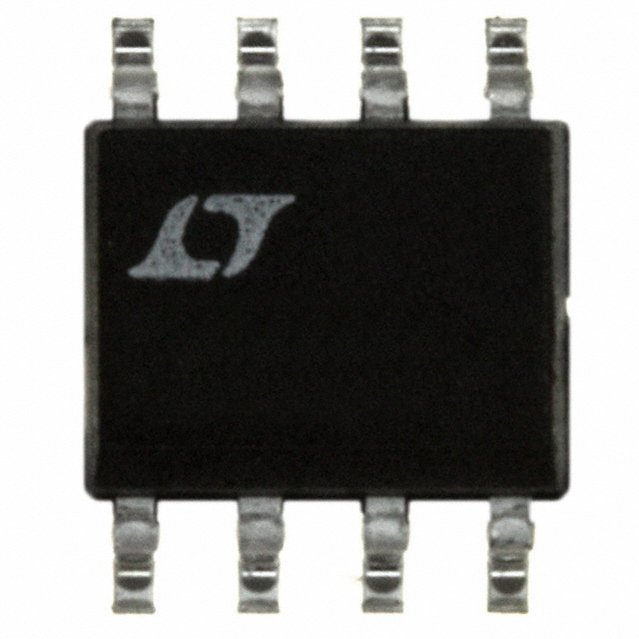

LT1208CS8#PBF

LINEAR TECHNOLOGY  LT1208CS8#PBF  运算放大器, 双路, 45 MHz, 2个放大器, 400 V/µs, ± 2.5V 至 ± 15V, SOIC, 8 引脚

The is a dual very high speed Operational Amplifier with excellent DC performance. The LT1208 feature reduced input offset voltage and higher DC gain than devices with comparable bandwidth and slew rate. Each amplifier is a single gain stage with outstanding settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. Each output is capable of driving a 500W load to ±12 with ±15V supplies and a 150W load to ±3 on ±5V supplies. The amplifier is also capable of driving large capacitive loads which make them useful in buffer or cable driver applications.

.

3mV Maximum input offset voltage

.

±12V Minimum output swing into 500W

.

7mA per Amplifier supply current

.

90ns Settling time to 0.1%, 10V step

.

Drives all capacitive loads
