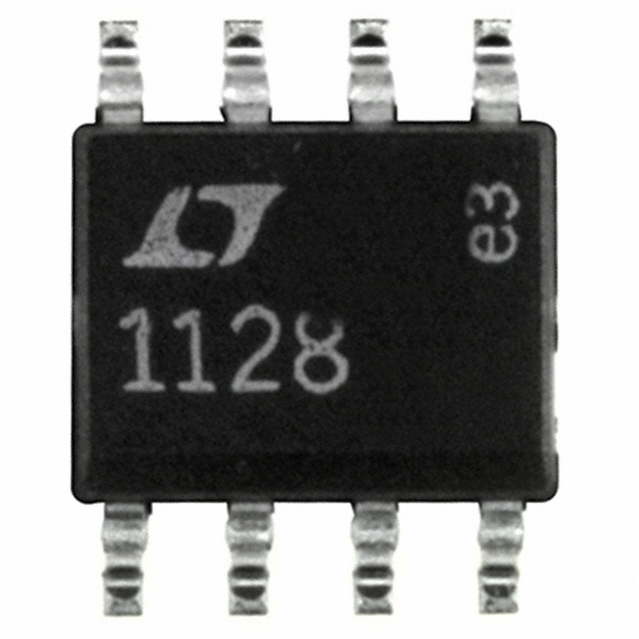

LT1128CS8#PBF

LINEAR TECHNOLOGY  LT1128CS8#PBF  运算放大器, 单路, 20 MHz, 1个放大器, 6 V/µs, ± 4V 至 ± 18V, SOIC, 8 引脚

The is an Operational Amplifier achieve a new standard of excellence in noise performance with 0.85nV/√Hz 1kHz noise, 1.0nV/√Hz 10Hz noise. This ultralow noise is combined with excellent high speed specifications gain-bandwidth product is 20MHz for LT1128, distortion-free output and true precision parameters 0.1µV/°C drift, 10µV offset voltage, 30 million voltage gain. Although the LT1128 input stage operates at nearly 1mA of collector current to achieve low voltage noise, input bias current is only 25nA. The LT1128"s voltage noise is less than the noise of a 50R resistor. Therefore, even in very low source impedance transducer or audio amplifier applications, the LT1128"s contribution to total system noise will be negligible.

.

40µV Maximum offset voltage

.

0.8µV/°C Maximum drift with temperature

.

7 million Minimum voltage gain
