双路运算放大器 Dual Operational Amplifier
DESCRIPON
The LM1458 and the LM1558 are general purpose dual operational amplifiers. The two amplifiers share a common bias network and power supply leads. Otherwise, their operation is completely independent. The LM1458 is identical to the LM1558 except that the LM1458 has its specifications guaranteed over the temperature range from 0°C to +70°C instead of −55°C to +125°C.
FEATURES
• No Frequency Compensation Required
• Low-Power Consumption
• Short-Circuit Protection
• 8-Lead TO-99 and 8-Lead PDIP
• Wide Common-Mode and Differential Voltage Ranges
• No Latch Up When Input Common Mode Range is Exceeded
电源电压DC 15.0 V
输出电流 45.0 mA
供电电流 3 mA
电路数 2
通道数 2
耗散功率 0.5 W
共模抑制比 70 dB
输入补偿漂移 0.00 V/K
带宽 1.00 MHz
转换速率 500 mV/μs
增益频宽积 1 MHz
输入补偿电压 1 mV
输入偏置电流 200 nA
工作温度Max 125 ℃
工作温度Min -55 ℃
增益带宽 1 MHz
耗散功率Max 500 mW
共模抑制比Min 70 dB
电源电压Max 44 V
电源电压Min 6 V
安装方式 Through Hole
引脚数 8

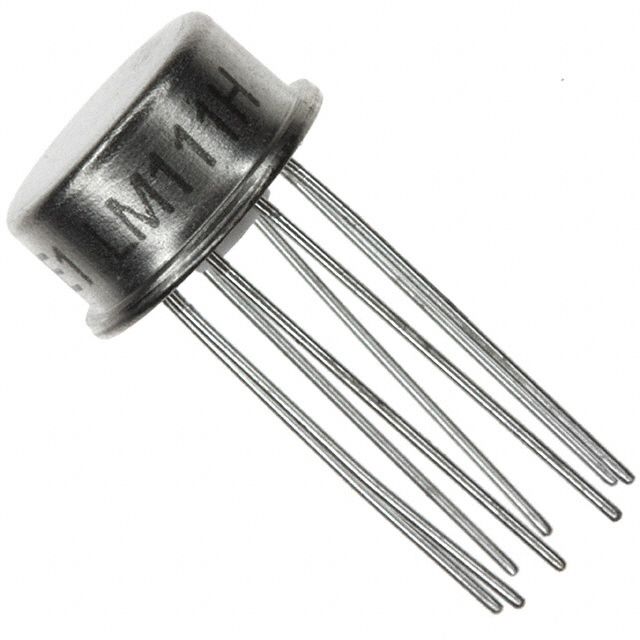

封装 TO-99-8
宽度 9.14 mm
封装 TO-99-8
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Box
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM1558H TI 德州仪器 | 当前型号 | 当前型号 |
MC1558G 德州仪器 | 类似代替 | LM1558H和MC1558G的区别 |
LM1558H/883 德州仪器 | 功能相似 | LM1558H和LM1558H/883的区别 |
