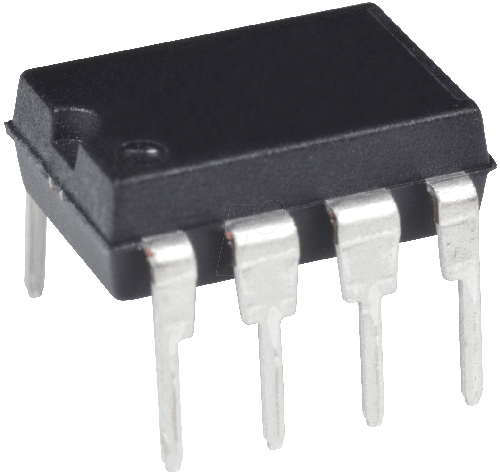

LINEAR TECHNOLOGY LT1028CN8#PBF 运算放大器, 单路, 50 MHz, 1个放大器, 15 V/µs, ± 4V 至 ± 18V, DIP, 8 引脚
The is an ultralow noise precision high speed Operational Amplifier achieves a new standard of excellence in noise performance with 0.85nV/√Hz 1kHz noise, 1.0nV/√Hz 10Hz noise. This ultralow noise is combined with excellent high speed specifications gain-bandwidth product is 75MHz, distortion-free output and true precision parameters 0.1µV/°C drift, 10µV offset voltage, 30million voltage gain. Although the input stage operates at nearly 1mA of collector current to achieve low voltage noise, input bias current is only 25nA. The LT1028"s voltage noise is less than the noise of a 50R resistor. Therefore, even in very low source impedance transducer or audio amplifier applications, the LT1028"s contribution to total system noise will be negligible.
电源电压DC 15.0 V
供电电流 7.6 mA
电路数 1
通道数 1
针脚数 8
带宽 50 MHz
转换速率 15.0 V/μs
增益频宽积 75 MHz
输入补偿电压 20 µV
输入偏置电流 30 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 75 MHz
电源电压 8V ~ 44V
电源电压Max 22 V
安装方式 Through Hole
引脚数 8

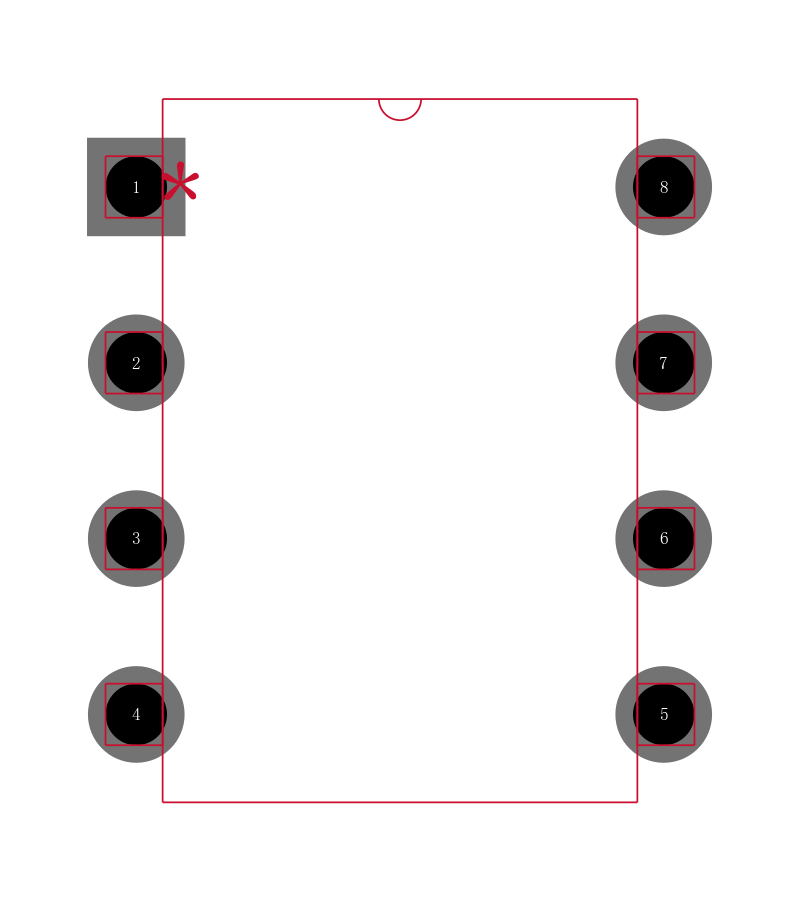

封装 DIP-8
封装 DIP-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Each
制造应用 Sensing & Instrumentation, 传感与仪器, Signal Processing, Audio, 音频, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1028CN8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1028ACN8#PBF 凌力尔特 | 类似代替 | LT1028CN8#PBF和LT1028ACN8#PBF的区别 |
LT1028ACJ8 凌力尔特 | 功能相似 | LT1028CN8#PBF和LT1028ACJ8的区别 |
