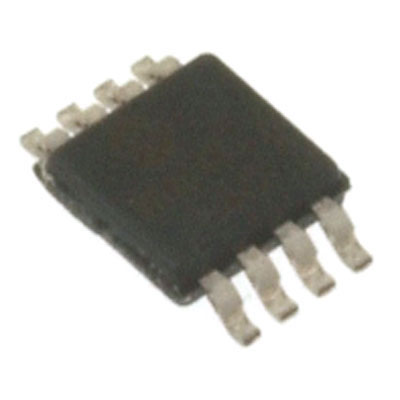

LINEAR TECHNOLOGY LTC1992-1HMS8#PBF Differential Amplifier, Low Power, 1 Amplifiers, 4mV, 3GHz, -40℃, 125℃
Need to have an indication of current being drawn in parts of your circuit? Implement this differential amplifier differential amplifier from for current sensing features. It has a differential|rail to rail output. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±1.35 V and maximum of ±5.5 V. This part has a temperature range of -40 °C to 125 °C. This device uses one or two power supplies. It has a single channel per chip.
电源电压DC 6.00 V
供电电流 700 µA
电路数 1
带宽 3 GHz
转换速率 1.50 V/μs
增益频宽积 3 MHz
输入补偿电压 4 mV
输入偏置电流 2 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 3.2 MHz
共模抑制比Min 55 dB
电源电压 2.7V ~ 11V
电源电压Max 10V ~ 15V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
高度 0.86 mm
封装 MSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC1992-1HMS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1992-1IMS8#TRPBF 凌力尔特 | 类似代替 | LTC1992-1HMS8#PBF和LTC1992-1IMS8#TRPBF的区别 |
LTC1992-1HMS8#TRPBF 凌力尔特 | 类似代替 | LTC1992-1HMS8#PBF和LTC1992-1HMS8#TRPBF的区别 |
LTC1992-1CMS8#TR 凌力尔特 | 功能相似 | LTC1992-1HMS8#PBF和LTC1992-1CMS8#TR的区别 |
