Texas Instruments### 差分放大器，Texas Instruments
差分放大器，Texas Instruments
欧时:

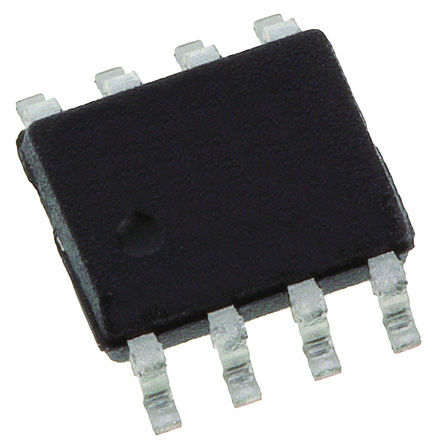

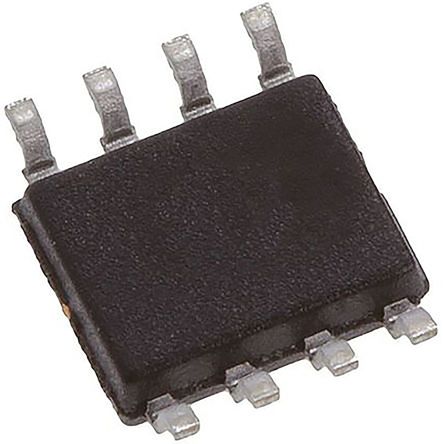

Texas Instruments LMH6552MA/NOPB 差分放大器, 5 V 9 V电源, 0dB最大增益, 8引脚 SOIC封装
得捷:
IC OPAMP CFA 1 CIRCUIT 8SOIC
立创商城:
LMH6552MA/NOPB
德州仪器TI:
1.5 GHz Fully Differential Amplifier
艾睿:
Unlike a mono amplifier, this differential amplifier LMH6552MA/NOPB differential amplifier from Texas Instruments uses two channels to amplify audio signals. It has a differential output. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±2.25 V and maximum of ±6 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device uses one or two power supplies. It has a single channel per chip.
Verical:
SP Amp DIFF AMP Single ±6V/12V 8-Pin SOIC Tube
DeviceMart:
IC AMP FULLY DIFF 1GHZ 8-SOIC
输出电流 80.0 mA
供电电流 22.5 mA
电路数 1
通道数 1
共模抑制比 80 dB
输入补偿漂移 0.00 V/K
带宽 1.50 GHz
转换速率 3.80 kV/μs
增益频宽积 1.50 GHz
增益 1.00 dB
输入补偿电压 16.5 mV
输入偏置电流 110000 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 1.5 GHz
共模抑制比Min 75dB ~ 85dB
电源电压Max 10V ~ 15V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.45 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LMH6552MA/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMH6552MAX/NOPB 德州仪器 | 类似代替 | LMH6552MA/NOPB和LMH6552MAX/NOPB的区别 |
LMH6552MAX 美国国家半导体 | 类似代替 | LMH6552MA/NOPB和LMH6552MAX的区别 |
LMH6552MA 德州仪器 | 功能相似 | LMH6552MA/NOPB和LMH6552MA的区别 |
