LTC6431AIUF-15#PBF

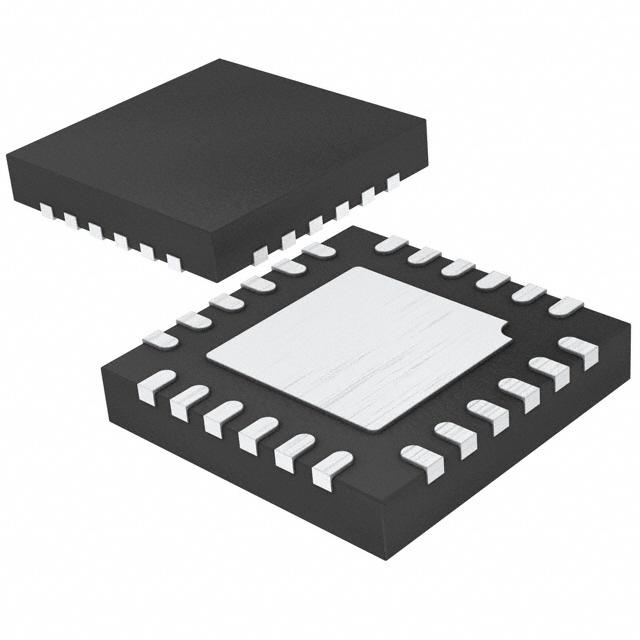

LINEAR TECHNOLOGY  LTC6431AIUF-15#PBF  运算放大器, 单路, 2 GHz, 1个放大器, 4.75V 至 5.25V, QFN, 24 引脚

The is a gain-block Amplifier with excellent linearity at frequencies beyond 1000MHz and with low associated output noise. The unique combination of high linearity, low noise and low power dissipation make this an ideal candidate for many signal-chain applications. The LTC6431-15 is easy to use, requiring a minimum of external components. It is internally input/output matched to 50R and it draws only 90mA from a single 5V supply. On-chip bias and temperature compensation maintain performance over environmental changes.

.

15.5dB Power gain

.

50R Single-ended operation

.

Insensitive to VCC variation

.

A-grade 100% OIP3 tested at 240MHz

.

Input/output internally matched to 50R

.

Single 5V supply

.

Unconditionally stable
