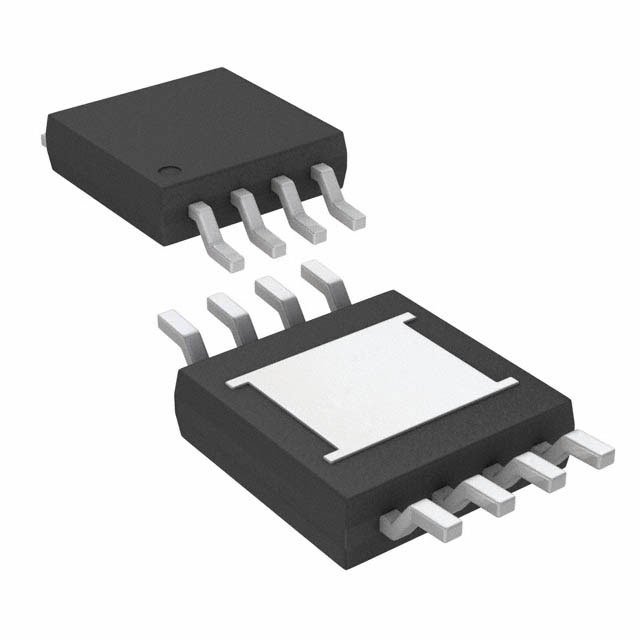

LINEAR TECHNOLOGY LTC6269IMS8E#PBF. 芯片, 运算放大器, 双路, 350MHZ, 400V/uS, MSOP-8
The is a dual 500MHz FET-input Operational Amplifier with extremely low input bias current and low input capacitance. It also features low input referred current noise and voltage noise making it an ideal choice for high speed transimpedance amplifiers, CCD output buffers and high-impedance sensor amplifiers. Its low distortion makes the LTC6269 an ideal amplifier for driving SAR ADCs. It operates on 3.1 to 5.25V supply and consumes 16.5mA per amplifier. A shutdown feature can be used to lower power consumption when the amplifier is not in use.
- .
- 5.5fA/√Hz 100kHz Current noise
- .
- 4.3nV/√Hz 1MHz Voltage noise
- .
- Extremely low CIN 450fF
- .
- Rail-to-rail output
- .
- 400V/µs Slew rate
供电电流 16.5 mA
电路数 2
针脚数 8
带宽 350 MHz
转换速率 400 V/μs
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 350 MHz
电源电压 3.1V ~ 5.25V
安装方式 Surface Mount
引脚数 8

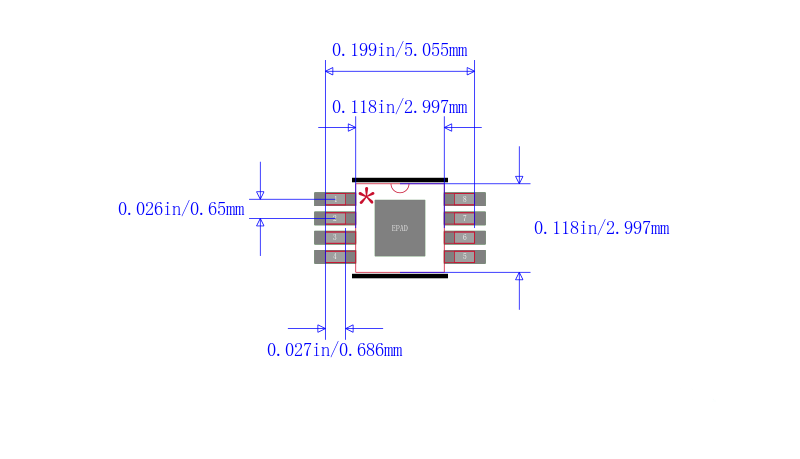

封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 信号处理, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC6269IMS8E#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC6269HMS8E#PBF 凌力尔特 | 类似代替 | LTC6269IMS8E#PBF和LTC6269HMS8E#PBF的区别 |
LTC6269IMS8E#TRPBF 凌力尔特 | 类似代替 | LTC6269IMS8E#PBF和LTC6269IMS8E#TRPBF的区别 |
AD8012ARMZ 亚德诺 | 功能相似 | LTC6269IMS8E#PBF和AD8012ARMZ的区别 |
