LINEAR TECHNOLOGY LT1167AIN8#PBF 仪器放大器, 1个放大器, 15 µV, 1.2 V/µs, 1 MHz, ± 2.3V 至 ± 18V, DIP
The is a low power precision Instrumentation Amplifier that requires only one external resistor to set gains of 1 to 10000. The low voltage noise of 7.5nV/√Hz at 1kHz is not compromised by low power dissipation 0.9mA typical for ±2.3V to ±15V supplies. The part"s high accuracy 10ppm maximum nonlinearity, 0.08% max gain error G=10 is not degraded even for load resistors as low as 2k. The amplifier is laser trimmed for very low input offset voltage 40µV maximum, drift 0.3µV/°C, high CMRR 90dB, G=1 and PSRR 105dB, G=1. Low input bias currents of 350pA max are achieved with the use of superbeta processing. The output can handle capacitive loads up to 1000pF in any gain configuration while the inputs are ESD protected up to 13kV human body. The LT1167 with two external 5k resistors passes the IEC 1000-4-2 level 4 specification.
电源电压DC 15.0 V
供电电流 900 µA
电路数 1
通道数 1

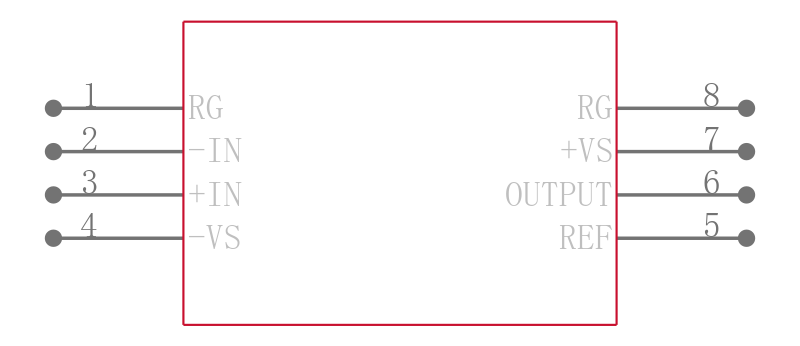

针脚数 8
共模抑制比 140 dB
带宽 1 MHz
转换速率 1.20 V/μs
输入补偿电压 15 µV
输入偏置电流 50 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 1 MHz
共模抑制比Min 90 dB
电源电压Max 30V ~ 50V
安装方式 Through Hole
引脚数 8

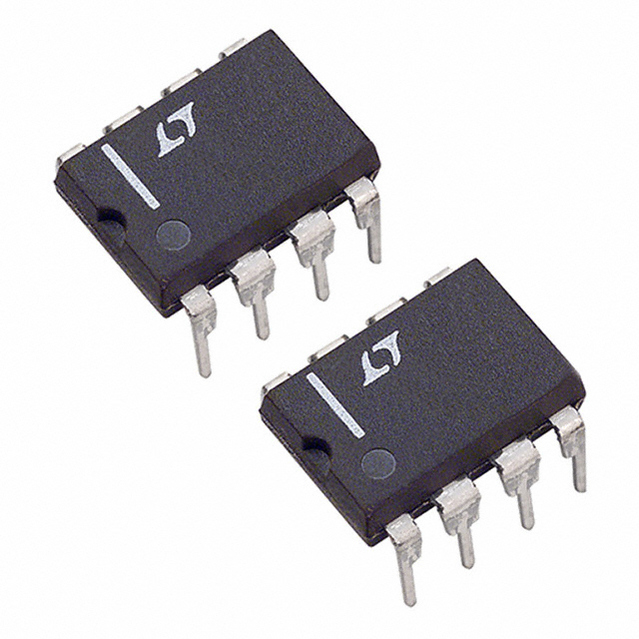

封装 DIP-8
高度 3.3 mm
封装 DIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
制造应用 Industrial, Signal Processing, 工业, Medical, 医用, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1167AIN8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1167ACN8 凌力尔特 | 完全替代 | LT1167AIN8#PBF和LT1167ACN8的区别 |
LT1167AIN8 凌力尔特 | 完全替代 | LT1167AIN8#PBF和LT1167AIN8的区别 |
AD621ANZ 亚德诺 | 功能相似 | LT1167AIN8#PBF和AD621ANZ的区别 |
