ARM微控制器 - MCU High Performance 32-bit Microcontroller based on ARM Cortex-M3
Overview

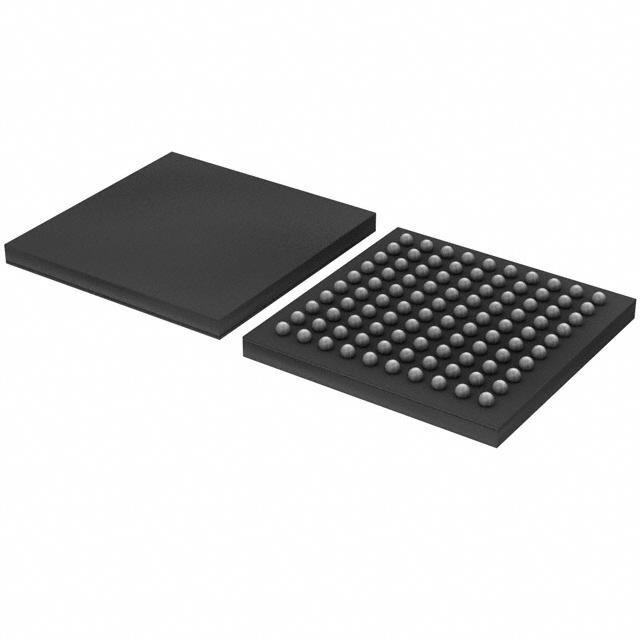

The LPC1830FET100 is a high-performance, cost-effective Cortex-M3 microcontroller featuring 200 kB of SRAM, and advanced peripherals including Ethernet, High Speed USB 2.0 Host/OTG/Device and CAN 2.0B. Operating at speeds up to 180 MHz, the LPC1830 also features two new configurable peripherals: a SPI Flash Interface and a State Configurable Timer. All members of the series include a Wakeup Interrupt Controller allowing automatic wake from any priority interrupt as well as four reduced power modes: Sleep, Deep-Sleep, Power-Down, and Deep Power-Down.
MoreLess
## Features
* ARM Cortex-M3 processor, running at frequencies of up to 180 MHz
* ARM Cortex-M3 built-in Memory Protection Unit MPU supporting eight regions
* ARM Cortex-M3 built-in Nested Vectored Interrupt Controller NVIC
* Non-maskable Interrupt NMI input
* JTAG and Serial Wire Debug
* ETM and ETB support
* System tick timer
* 200 kB SRAM for code and data use
* 32 kB ROM containing boot code and on-chip software drivers
* Crystal oscillator with an operating range of 1 MHz to 25 MHz
* 12 MHz internal RC oscillator trimmed to 1 % accuracy
* Ultra-low power RTC crystal oscillator
* Clock output
* Two PLLs allow CPU operation up to the maximum CPU rate
* Quad SPI Flash Interface with four lanes and data rates of up to 40 MB/s
* 10/100T Ethernet MAC with RMII and MII interfaces and DMA support
* One High-speed USB 2.0 Host/Device/OTG interface with DMA support
* One High-speed USB 2.0 Host/Device interface with DMA support
* Four 550 UARTs with DMA support: one UART with full modem interface
* One UART with IrDA interface
* One C_CAN 2.0B controller with one channel
* Two SSP controllers with FIFO and multi-protocol support
* One Fast-mode Plus I2C-bus interface with monitor mode
* One standard I2C-bus interface with monitor mode and standard I/O pins
* One I2S interface with DMA support and with one input and one output
* External Memory Controller EMC
* SD/MMC card interface
* Eight-channel General-Purpose DMA GPDMA controller
* Up to 49 General-Purpose Input/Output GPIO pins
* GPIO registers are located on the AHB for fast access
* State Configurable Timer SCT subsystem on AHB
* Four general-purpose timer/counters with capture and match capabilities
* One motor control PWM for three-phase motor control
* One Quadrature Encoder Interface QEI
* Repetitive Interrupt timer RI timer
* Windowed watchdog timer
* Ultra-low power Real-Time Clock RTC on separate power domain
* Alarm timer; can be battery powered
* One 10-bit DAC with DMA support and a data conversion rate of 400 kSamples/s
* Two 10-bit ADCs with DMA support and a data conversion rate of 400 kSamples/s
* Hardware-based AES security engine programmable through an on-chip API
* Two 128-bit secure OTP memories for AES key storage and customer use
* Unique ID for each device
* Single 3.3 V 2.2 V to 3.6 V power supply with on-chip voltage regulator
* RTC power domain can be powered separately by a 3 V battery supply
* Four reduced power modes
* Overdrive mode to increase CPU and bus clock frequency
* Processor wake-up from Sleep mode via wake-up interrupts
* Wake-up from Deep-sleep, Power-down, and Deep power-down modes
* Brownout detect with four separate thresholds for interrupt and forced reset
* Power-On Reset POR
## Target Applications
* Industrial
* Consumer
* White goods
* RFID readers
* e-Metering
