ail-to- ail Input and Output, 2.7V Op Amp in micro SMD package with Shutdown 8-VSSOP -40℃ to 85℃
The LMC8101 is a Rail‐to‐Rail Input and Output high performance CMOS operational amplifier. The LMC8101 is ideal for low voltage 2.7V to 10V applications requiring Rail‐to‐Rail inputs and output. The LMC8101 is supplied in the die sized DSBGA as well as the 8 pin VSSOP packages. The DSBGA package requires 75% less board space as compared to the SOT-23 package. The LMC8101 is an upgrade to the industry standard LMC7101.
The LMC8101 incorporates a simple user controlled methodology for shutdown. This allows ease of use while reducing the total supply current to 1nA typical. This extends battery life where power saving is mandated. The shutdown input threshold can be set relative to either V+ or V− using the SL pin see section for details.
Other enhancements include improved offset voltage limit, three times the output current drive and lower 1/f noise when compared to the industry standard LMC7101 Op Amp. This makes the LMC8101 ideal for use in many battery powered, wireless communication and Industrial applications.
输出电流 ≤80 mA
供电电流 1.1 mA
电路数 1
通道数 1
共模抑制比 70 dB
输入补偿漂移 4.00 µV/K
转换速率 1.00 V/μs
增益频宽积 1.3 MHz
输入补偿电压 700 µV
输入偏置电流 1 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 1.3 MHz
共模抑制比Min 70 dB
安装方式 Surface Mount
引脚数 8

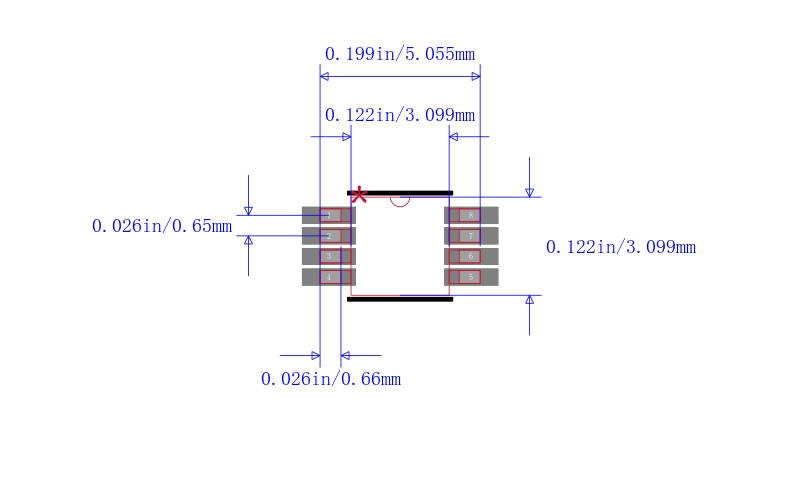

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMC8101MMX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMC8101MM 德州仪器 | 完全替代 | LMC8101MMX/NOPB和LMC8101MM的区别 |
LMC8101MM/NOPB 德州仪器 | 类似代替 | LMC8101MMX/NOPB和LMC8101MM/NOPB的区别 |
LMC8101MMX 德州仪器 | 功能相似 | LMC8101MMX/NOPB和LMC8101MMX的区别 |
