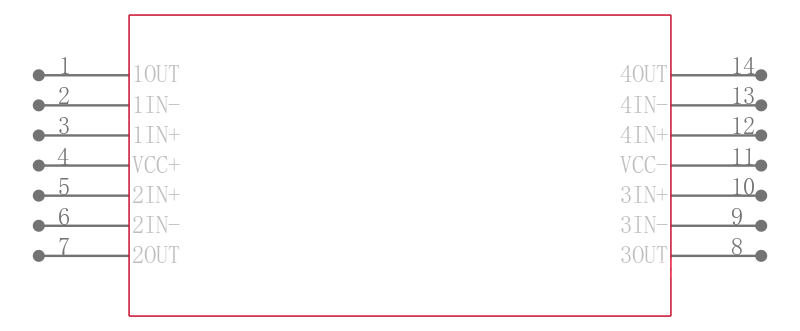

LMV934Q1MTX/NOPB

汽车类四路 1.8V RRIO 运算放大器 14-TSSOP -40 to 125

Description

The LMV93x-N family LMV931-N single, LMV932-N dual and LMV934-N quad are low-voltage, low power operational amplifiers. The LMV93x-N family operates from 1.8-V to 5.5-V supply voltages and

have rail-to-rail input and output. The input common mode voltage extends 200 mV beyond the supplies

which enables user enhanced functionality beyond the supply voltage range. The output can swing rail

to-rail unloaded and within 105 mV from the rail with 600-Ω load at 1.8-V supply. The LMV93x-N devices

are optimized to work at 1.8 V, which make them ideal for portable two-cell, battery-powered systems

and single-cell Li-Ion systems.

Features

• Typical 1.8-V Supply Values; Unless Otherwise Noted

• Available in Automotive AEC-Q100 Grade 1

• Specified at 1.8-V, 2.7-V and 5-V

• Output Swing

   – With 600-Ω Load 80 mV from Rail

   – With 2-kΩ Load 30 mV from Rail

• VCM 200 mV Beyond Rails

• Supply Current per Channel 100 μA

• Gain Bandwidth Product 1.4 MHz

• Maximum VOS 4.0 mV

• Ultra Tiny Packages

• Temperature Range −40°C to 125°C

Applications

• Mobile Phones

• Tablets

• Wearables

• Health Monitoring

• Portable and Battery-Powered Electronic Equipment

• Battery Monitoring
