Texas Instruments
高速
得捷:
IC OPAMP CFA 1 CIRCUIT SOT23-6
立创商城:
LMH6732MF/NOPB
德州仪器TI:
High Speed Op Amp with Adjustable Bandwidth
欧时:
### 高速运算放大器### 运算放大器,Texas Instruments
艾睿:
This current feedback amplifier LMH6732MF/NOPB OP amp from Texas Instruments is a simple circuit component used for signal amplification. Its typical dual supply voltage is ±5 V, with a minimum of ±4.5 V and maximum of ±6 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device uses dual power supplies. It has a single channel per chip.
安富利:
OP Amp Single Current Fdbk ±6V 6-Pin SOT-23 T/R
Chip1Stop:
OP Amp Single Current Fdbk ±6V 6-Pin SOT-23 T/R
Verical:
OP Amp Single Current Fdbk ±6V 6-Pin SOT-23 T/R
输出电流 115 mA
供电电流 9 mA
电路数 1
通道数 1
共模抑制比 49 dB
输入补偿漂移 16.0 µV/K
转换速率 2.70 kV/μs
增益频宽积 540 MHz
输入补偿电压 3 mV
输入偏置电流 2 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 540 MHz
增益带宽 540 MHz
共模抑制比Min 49 dB
电源电压Max 12 V
电源电压Min 9 V
安装方式 Surface Mount
引脚数 6

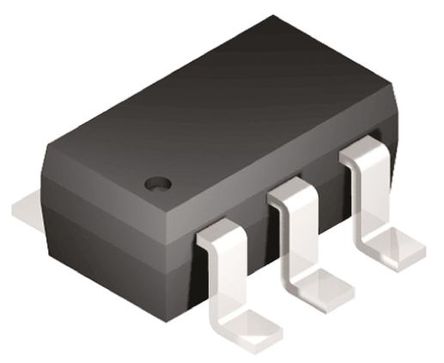

封装 SOT-23-6
长度 2.92 mm
宽度 1.6 mm
高度 1.02 mm
封装 SOT-23-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMH6732MF/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMH6732MF 德州仪器 | 完全替代 | LMH6732MF/NOPB和LMH6732MF的区别 |
LMH6732MFX 德州仪器 | 完全替代 | LMH6732MF/NOPB和LMH6732MFX的区别 |
LMH6732MFX/NOPB 德州仪器 | 类似代替 | LMH6732MF/NOPB和LMH6732MFX/NOPB的区别 |
